2.0mm Single Mode G657A 25M Duplex Fiber Patch Cord LC To LC

2.0mm Single Mode G657A 25M LC-LC Duplex Fiber Patch Cord Cables

1. Fiber Patch Cord Basic Introduction:

Geehe offers an extensive line of LC fiber optic jumpers. Included in the offering are both simplex and duplex jumpers as well as hybrids and pigtails.

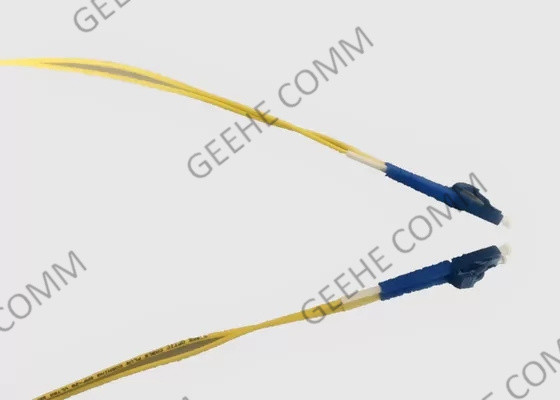

The LC connectors used on the LC Patchcords have a trigger mechanism that allows the connector to be easily engaged and disengaged. This trigger also prevents the plug from snagging when jumper cables are being routed. On the multimode duplex jumper, the trigger also allows the two plugs to be simultaneously disengaged.

The LC Jumpers are available in 1.6,2.0 and 3.0mm diameter cordage. The smallest in the industry, the 1.6mm cordage allows greater jumper density in a fully loaded frame and prevents congestion in overhead racks.  A duplex jumper density in a fully loaded frame and prevents congestion in overhead racks. A duplex jumper can be peeled apart with ease so that two cords can be installed as one, they easily separated into two, saving time and effort. Single-mode provides excellent bend loss performance. The bend radius allows jumpers to be installed in spaces with limited maneuverability or around sharp corners.

Jumpers are tested and must meet a maximum insertion loss of 0.15dB. Jumpers come in fixed lengths or can be ordered in customs lengths. LC jumpers are available with angled and reduced-length cable support options for unique applications where space may be a constraint.

2. Fiber Optic Jumper Benefit & Features:

• Half the size of standard connectors: doubles fiber density in shelves and outlets-lowing system cost
• RJ-45 style push/pulling housing: allows easy disengagement in dense spaces
• Polarized: helps assures high repeatability, maintains transmit/receive direction
• Pull-proof: maintains optical contract  under loads and helps prevent accidental disconnects
• UPC finish: helps minimize transmission problems, optimizes optical contact
• Anti-snag latch: improves durability and reduces cross-connect rearrangement effort

3. Fiber Optic Jumper Applications:

• Telecommunication Networks
• Cable Television (CATV)
• Premises Distribution
• Local Area Networks (LAN)
• Fiber -to the- Home (FTTx)
• Data Processing Network
• Fiber-to- the Desktop
• Device Terminations

4. Specification&Technology Parameters

5. Ordering Information

Legacy ordering information

6.  Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
