Product Details:
|
| Model Name: | ST-LC Fiber Patch Cord | Fiber Counts: | Simplex |
|---|---|---|---|
| Fiber Type: | Single Mode | Sheath Material: | OFNR Riser |
| Connectors: | LC To ST | Cable Length: | 0.5m/1m/1.5m Or Customized |
| Endface Of The Connector: | PC/UPC/APC | Diameter Of The Cable: | 0.9/1.8/2.0/3.0/4.8/7.0 Mm |
| Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
| Highlight: | Fiber Patch Cord For CATV,3M ST To LC Fiber Patch Cord,Fiber Optic Patch Cord Simplex 9/125 |
||
2.0mm Single Mode G657A 25M LC-LC Duplex Fiber Patch Cord Cables
1. Fiber Patch Cord Basic Introduction:

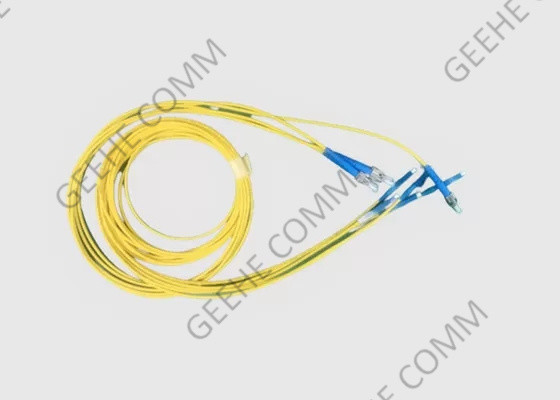

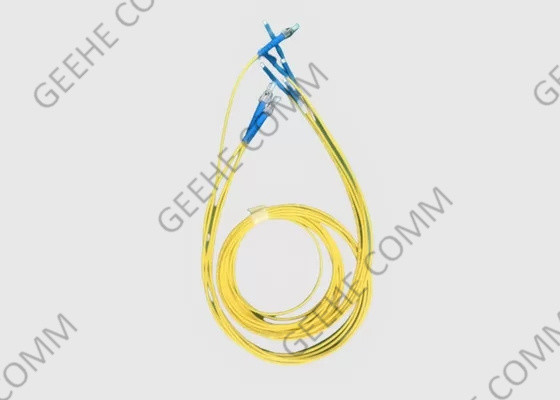

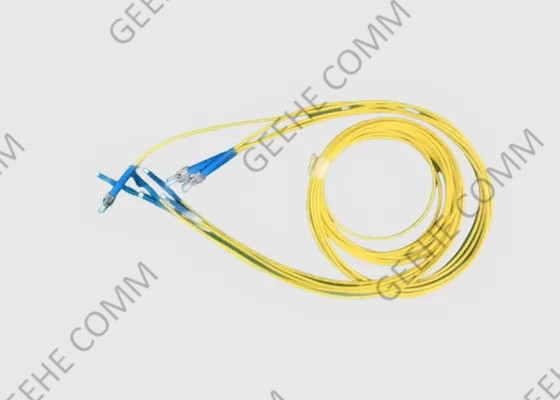

Single-mode duplex fiber optic LC/ST patch cable is manufactured from 8.3/125 zipcord fiber. The cable has LC connector on one end, ST connectors on the other, a PVC jacket, and OFNR rated. Duplex single-mode fiber is most commonly used in Lan Applications.
2. Fiber Optic Jumper Benefit & Features:
3. Fiber Optic Jumper Applications:
4. Specification&Technology Parameters
| Construction | |
| Fiber Count | 2- Fiber Round |
| Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
| Fiber Types | Singlemode: OS2 9/125um Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
| Connector Types | Duplex LC Uniboot |
| Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
| Physical Properties | |
| Cable outside diameter (OD) | 2.0mm |
| Bend radius (min) | 40mm |
| Connector durability | 500 cycles |
| Bend radius (min)(Long- term) | 20mm (40mm) |
| Optical Properties | |
| Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max (Optimized IL) |
| SM: 0.25 dB max ( Optimized IL) | |
| Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
| Environmental Properties | |
| Storage and shipping temperature | -40℃-+70 ℃ |
| Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
| Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) | ||||
| P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
| 4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 | |
| 7 | G.657A1 | P | OFNP | E | Erika Violet | 3 | |||
| 8 | G.657A1 | 5 | |||||||
| 10 | |||||||||
Ordering information
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
| LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
| OM3 | OM3 | 5 | |||||||
| OM4 | OM4 | 10 | |||||||
6. Options Available
-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish
Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC
Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
