Product Details:
|
| Model Name: | Fiber Patch Cables& Pigtails E2000 | Fiber Counts: | Simplex |
|---|---|---|---|
| Fiber Type: | 10M 62.5/125 Ultima Single Mode 850nm Fiber Patch Cables Optical Pigtail E2000 | Sheath Material: | OFNR Riser |
| Connectors: | E2000 | Cable Length: | 0.5m/1m/1.5m Or Customized |
| Endface Of The Connector: | PC/UPC/APC | Diameter Of The Cable: | 0.9/1.8/2.0/3.0/4.8/7.0 Mm |
| Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
| Highlight: | 62.5/125 Fiber Patch Cables,E2000 Fiber Optic Cable Patch Cord,Single Mode 850nm Optical Pigtail |
||
10M 62.5/125 Ultima Single Mode 850nm Fiber Patch Cables& Pigtails E2000
1. Fiber Patch Cord Basic Introduction:
Fiber jumpers are our most economical line of fiber patch cables. These are kept in stock and are often able to ship on the same day. Fiber jumpers are stocked in meter lengths between 1 and 30 meters.

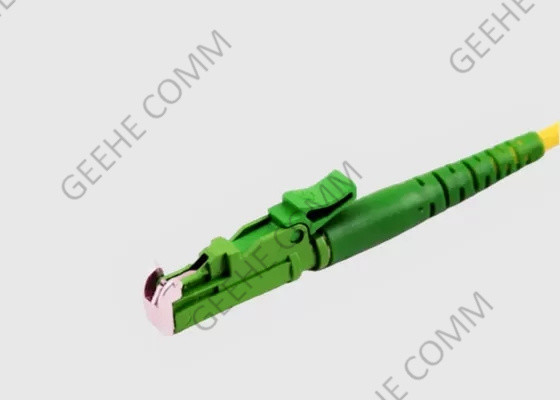

The E-2000 Connector Series is one of the few fiber optic connectors featuring a spring-loaded shutter that fully protects the ferrule from dust and scratches. The shutter closes automatically when the connector is disengaged, locking out impurities that could later lead to network failure, and locking in potentially harmful laser beams.
E2000 fiber connectors and related products comply with IEC 61 754-15 and TIA/EIA 604-16. We supply the E2000 connector, adapter, and cable assemblies.
The E2000 optical fiber connector comes with a spring louver to protect the ferrule from external contaminants. And effectively prevent laser radiation from causing harm to the human body.
2. Fiber Optic Jumper Benefit & Features:
High-quality ferrules
Selected ceramic ferrule, professional grinding technology, precise docking of fiber end face; lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient.
Stable parameter performance
The E2000 fiber optic connector meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.
Compliance with international standards
The E2000 Optical fiber connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-15, IEC 61753-1 and other standards.
3. Fiber Optic Jumper Applications:
4. Specification&Technology Parameters
| Construction | |
| Fiber Count | 2- Fiber Round |
| Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
| Fiber Types | Singlemode: OS2 9/125um Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
| Connector Types | Duplex LC Uniboot |
| Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
| Physical Properties | |
| Cable outside diameter (OD) | 2.0mm |
| Bend radius (min) | 40mm |
| Connector durability | 500 cycles |
| Bend radius (min)(Long- term) | 20mm (40mm) |
| Optical Properties | |
| Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max (Optimized IL) |
| SM: 0.25 dB max ( Optimized IL) | |
| Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
| Environmental Properties | |
| Storage and shipping temperature | -40℃-+70 ℃ |
| Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
| Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) | ||||
| P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
| 4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 | |
| 7 | G.657A1 | P | OFNP | E | Erika Violet | 3 | |||
| 8 | G.657A1 | 5 | |||||||
| 10 | |||||||||
Legacy ordering information
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
| E2000 to E2000 | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
| OM3 | OM3 | 5 | |||||||
| OM4 | OM4 | 10 | |||||||
6. Options Available
-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish
Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC
Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
