Product Details:
|

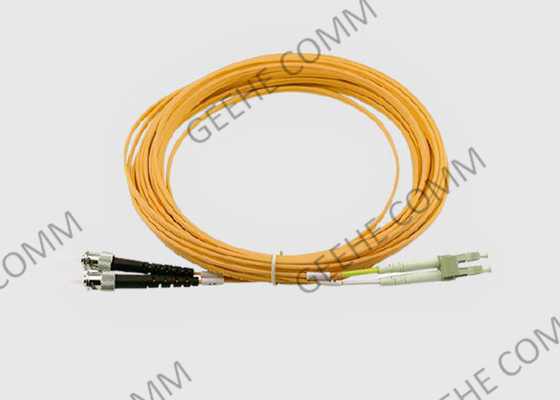

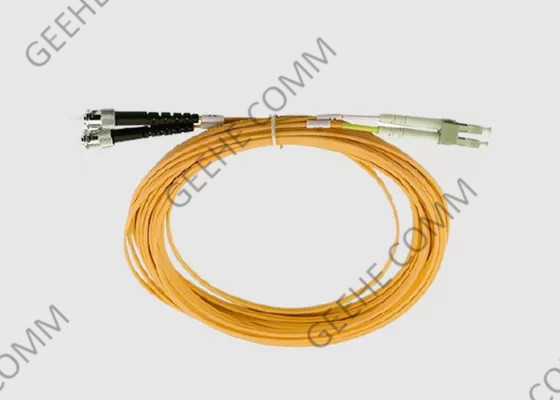

Model Name: | Duplex ST To LC Fiber Patch Cord | Fiber Counts: | Duplex |
---|---|---|---|
Fiber Type: | Multimode 62.5/125 | Sheath Material: | OFNR Riser |
Connectors: | ST-LC | Cable Length: | 0.5m/1m/1.5m Or Customized |
Endface Of The Connector: | PC/UPC/APC | Diameter Of The Cable: | 0.9/1.8/2.0/3.0/4.8/7.0 Mm |
Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
Highlight: | Fiber Jumper Cables 25M Multimode,62.5/125 ST to LC Fiber Patch Cord,LSZH 2.0mm OD Fiber Patch Cable |
Fiber Jumper G657A ST To SC Duplex 10g Single Mode Fiber Patch Cord
1. Fiber Patch Cord Basic Introduction:
Multimode fiber optic patch cables come in 62.5 microns and 50-micron diameters for the actual glass core. With the cladding layer, they are both 125 microns, and with the buffer layer, they are 250nm. You should ensure that you purchase patch cables that match the core of any other fibers to which you will be connecting. The PVC jacket of the multimode fiber is normally orange (although we can make them in other colors) and is 3.0mm in diameter for ST, SC, and FC connectors, but 2.0mm if the cable has an LC or MTRJ connector. We can also make these cables with a plenum jacket or an LSZH jacket if required.
2. Fiber Optic Jumper Benefit & Features:
3. Fiber Optic Jumper Applications:
4. Specification&Technology Parameters
Construction | |
Fiber Count | 2- Fiber Round |
Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
Fiber Types | Singlemode: OS2 9/125um Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
Connector Types | Duplex LC Uniboot |
Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
Physical Properties | |
Cable outside diameter (OD) | 2.0mm |
Bend radius (min) | 40mm |
Connector durability | 500 cycles |
Bend radius (min)(Long- term) | 20mm (40mm) |
Optical Properties | |
Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max (Optimized IL) |
SM: 0.25 dB max ( Optimized IL) | |
Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
Environmental Properties | |
Storage and shipping temperature | -40℃-+70 ℃ |
Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) | ||||
P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 | |
7 | G.657A1 | P | OFNP | E | Erika Violet | 3 | |||
8 | G.657A1 | 5 | |||||||
10 |
Legacy ordering information
Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
OM3 | OM3 | 5 | |||||||
OM4 | OM4 | 10 |
6. Options Available
-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish
Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC
Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
