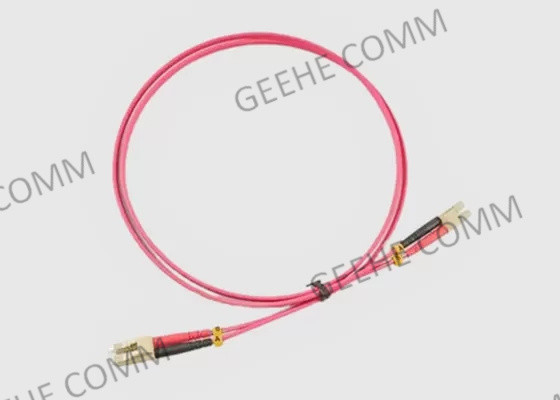

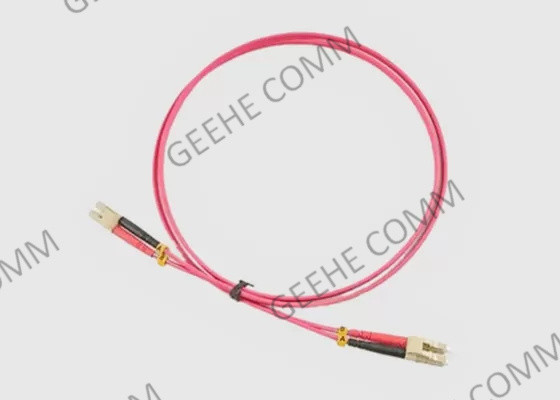

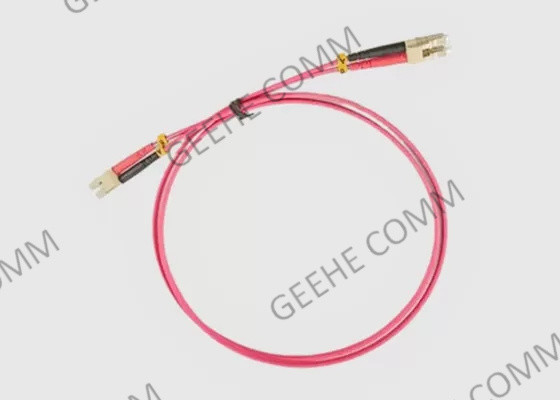

Multimode OM1 62.5/125 LC-LC Duplex Fiber Optic Jumper Cables 10M

Multimode OM1 62.5/125 LC-LC Duplex Fiber Optic Jumper Cables 10M

1. Fiber Patch Cord Basic Introduction:

Multimode & Single Mode Fiber Optic Patch Cables Fiber optic patch cables connect fiber optic patch panels and high-speed network devices. Geehe patch cables are fully tested to ensure reliable performance in critical applications. Available in single-mode fiber and multimode fiber cable, simplex or duplex, and a variety of standard fiber optic connectors.

Fiber features a thicker core diameter and a longer light wavelength. This limits the distance it can travel (up to around 600 meters), but also makes it less expensive. They allow multiple modes of light to travel along the fiber length and since the connections are simplified due to the larger core diameter, it means the equipment used in conjunction with it can be simpler, and thus less costly. Multi-Mode fiber has a high capacity and reliability, but sacrifices traveling distance and thus is better suited to short-run applications, such as a network within a building or data center.

2. Fiber Optic Jumper Benefit & Features:

• Fiber Construction
  Our standard patch cables are available in several different lengths and connector types. These fibers have a 900 µm jacket surrounded by a layer of Aramid yarn for extra protection. A 2.5 mm PVC cable jacket provides additional environmental protection.
• Custom Singlemode Patch Cables
  Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
• Excellent Performance
  Our Standard Patch Cables exhibit low attenuation while utilizing step-index fibers and also have a uniform core refractive index and a matched-clad profile.
• Popular Versions Available Off-the-shelf
  We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths of near UV 300, visible 488/514, 633, infrared 780, 820, 980, 1060, or 1300/1550 nm. If there is not a standard patch cable available for your application
• Each patch cord is packaged in a sealed plastic bag with cleaning instructions

3. Fiber Optic Jumper Applications:

• Telecommunication Networks
• Cable Television (CATV)
• Premises Distribution
• Local Area Networks (LAN)
• Fiber -to the- Home (FTTx)
• Sensors
• Instrumentation
• Device pigtails

4. Specification&Technology Parameters

5. Ordering Information

Legacy ordering information

6.  Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
