Product Details:
|
| Model Name: | Simplex Fiber Coupler No Flange | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | ST Female To ST Female | Fiber Counts: | Simplex |
| Dust Cap Color: | Yellow | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | Simplex Multimode Fiber Optic Coupler,No Flange Multimode Fiber Coupler,ST Female to ST Female Fiber Optic Coupler |
||
Yellow Dust Caps Duplex ST To LC Cable To Fiber Optic Adapter/Coupler
1. Product Overview:
Fiber optic adapter (also called fiber optic coupler), is a medium designed to connect two fiber optic cables or fiber optic connectors together. It provides a great solution to meet the growing demand for small form factor, high-density fiber optic connectivity.

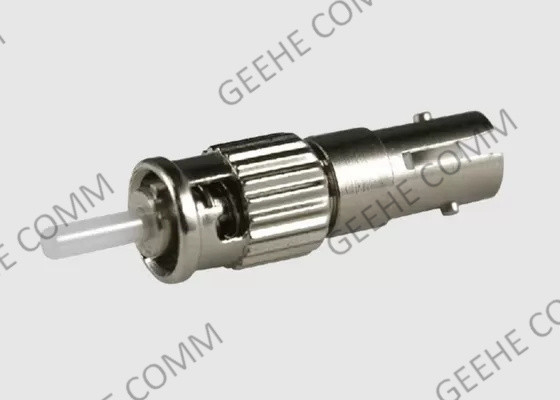

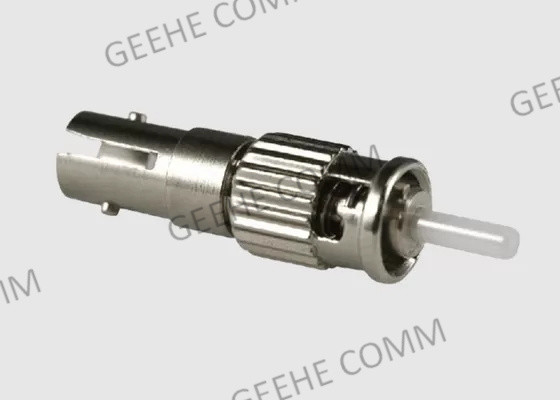

This ST Simplex Adapter allows you to patch together multimode ST connectors or ST fiber patch cables quickly. The ST coupler is particularly suitable to connect two multimode STs for a fast, precisely, quality field connection. The ST adapters feature zirconia ceramic alignment sleeves which provide precision mating for multimode applications.
2. ST Hybrid Adaptor Feature and Benefits:
3. Fiber Hybrid Adapter Applications:
4. Hybrid Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
