Product Details:
|
| Model Name: | E2000 Female To FC Male Hybrid Coneverter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | E2000/APC To FC/UPC Hybrid | Fiber Counts: | Simplex |
| Dust Cap Color: | Yellow | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | E2000 to FC Hybrid Converter,E2000 Female To FC Male Hybrid Adapter,E2000 to FC Hybrid Fiber Adapter |
||

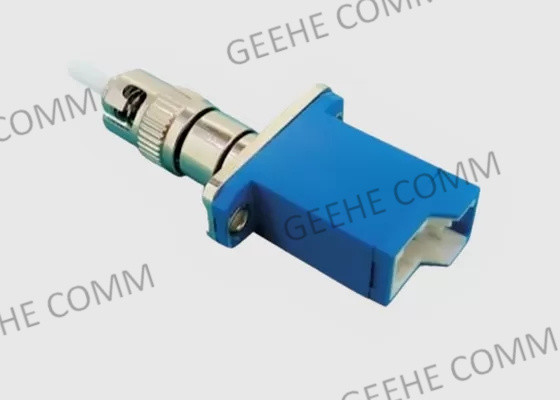

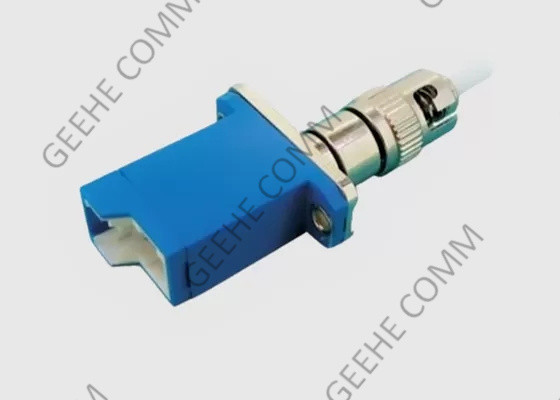

OEM Factory Single-mode E2000 Female to FC Male Hybrid Converter
1. Product Overview:
Hybrid Fiber Optic Adapters are used to provide a cable to cable or cable to equipment fiber optic connection. E2000 fiber optic adapter is ideal for cable assembly house and manufacturing environments and local area networks (LANs) at the workstation outlet. Fiber adapter is a small device designed to terminate or link the fiber optic cables or connectors between two fiber-optic lines. The adapter features compact size but excellent performance.
Geehe supplies complete E2000 fiber optic adapters, these products have various types including single-mode and multimode with UPC, APC versions, and connector to FC, SC, LC, ST, MU, etc. Except for the standard female to female E2000 fiber optic adapter, The hybrid E2000 fiber optical couplers are available.
2. ST Hybrid Adaptor Feature and Benefits:
3. Fiber Hybrid Adapter Applications:
4. Hybrid Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC E2000 |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
