Product Details:
|
| Model Name: | E2000 Female LC Male Hybrid Converter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | E2000 Female LC Male | Fiber Counts: | Simplex |
| Dust Cap Color: | Yellow | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | E2000 Female LC Male Hybrid Converter,Fiber Optic Adapter Single Mode |
||

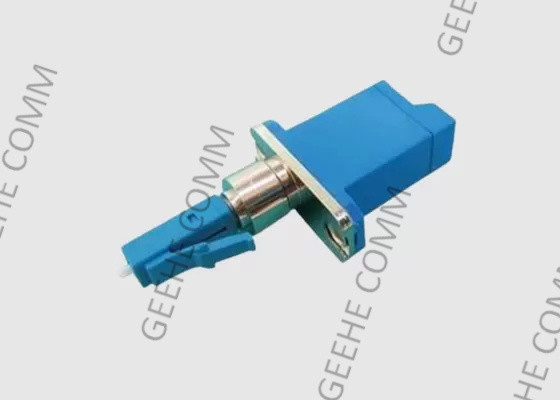

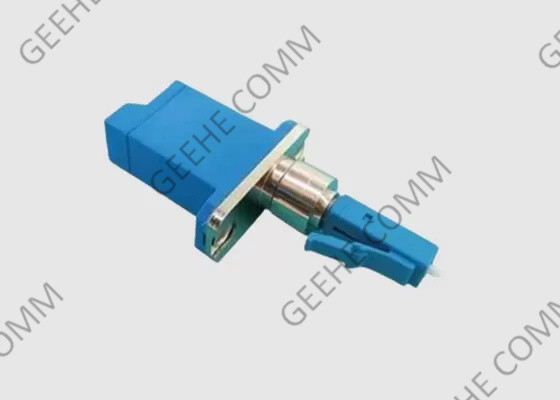

Fiber Optic Adapter Single Mode E2000 Female LC Male Hybrid Converter
1. Product Overview:
E2000 Bulkhead Adapter is a passive device. A solution to connect two E2000 fiber optic cables is called E2000 adapter/ coupler. It mainly applies to telecommunication and networking systems. E2000 optical adapter use for E2000 fiber optic connection, the typical use is to provide a cable to cable fiber connection.
The E2000 to LC Bulkhead Adapter/ coupler has high precision ceramic sleeve with low insertion loss. Signal transfers maximum through a cable to a cable.
Hybrid Fiber Adapters should fit the according to connectors, the fiber optic adaptors sides and shape are made as per the connectors. Generally, ST adapter and FC adapter are metal body, LC, SC, MU, MTRJ, E2000 types are the non-metal body. Single-mode fiber optic adapters are with ceramic sleeves, multimode fiber optic adapters are bronze sleeves. But you can also use ceramic sleeve fiber optic adapters to link multimode connectors.
2. ST Hybrid Adaptor Feature and Benefits:
3. Fiber Hybrid Adapter Applications:
4. Hybrid Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC E2000 |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
