Product Details:
|
| Model Name: | ST To SC Male-Male Duplex Fiber Optic Adapter | Fiber Counts: | Simplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Fiber Mode: | Single Mode |
| Durability: | >1000 Mating Times | Operating Temperature: | -40~75℃ |
| Adapter Mounting Type: | Reduced Flange | ||
| Highlight: | ST To SC Fiber Optic Cable Adapter,ST To SC Duplex Fiber Optic Adapter,ST To SC Optical Cable Adapter |
||

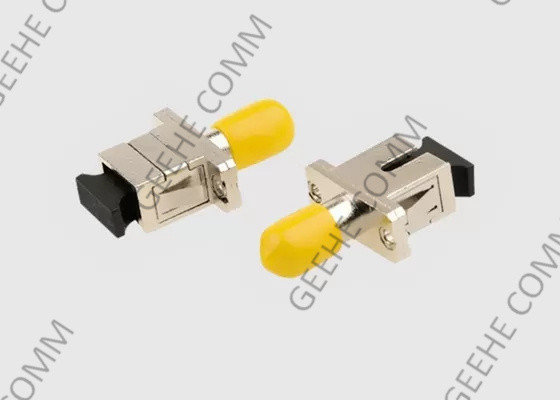

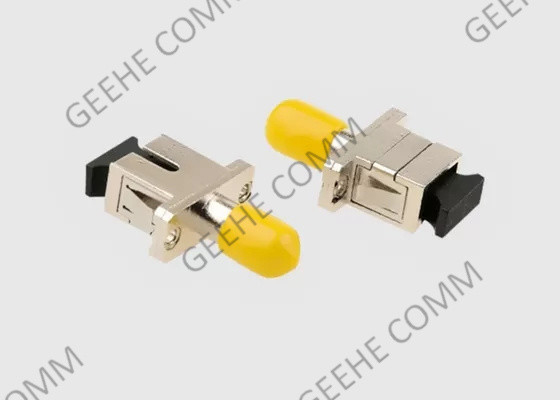

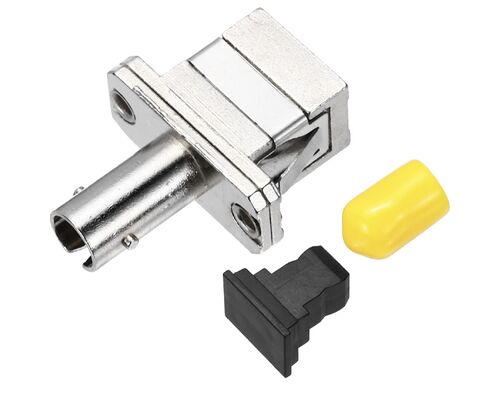

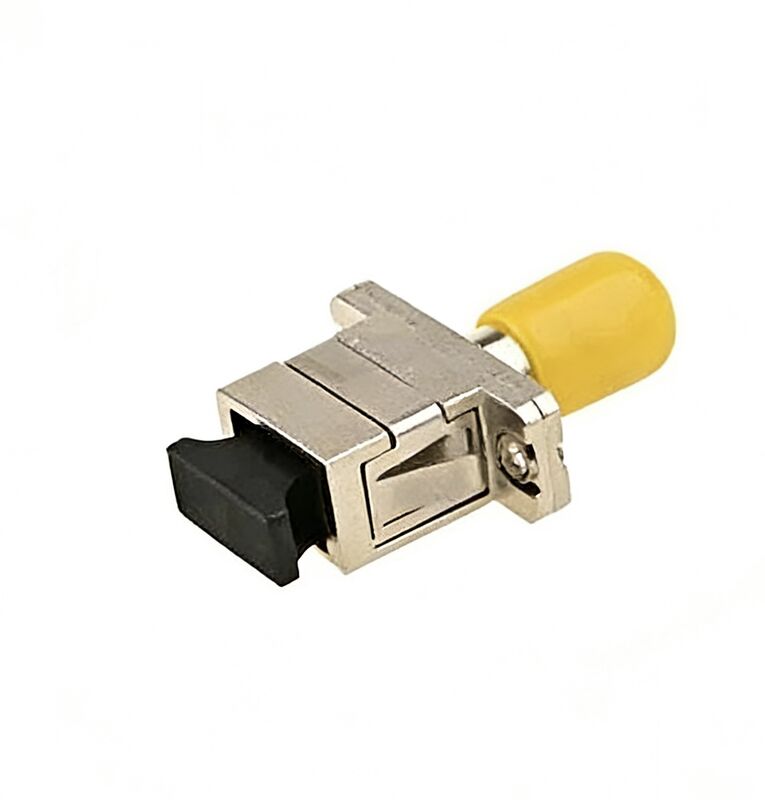

Plastic Body Multimode ST To SC Male-Male Duplex Fiber Optic Adapter
1. Product Overview:
Fiber optic adapters are typically designed to connect two fiber optic patch cables together. They come in various types, most adapters are female on both ends to connect two patch cables, while some adapters are male to female which allow the port to accept a different connector than for which it was originally designed, and we also assemble hybrid adapters which accept different types of connects.
This ST Simplex Adapter allows you to patch together multimode ST connectors or SC fiber patch cables quickly. The ST coupler is particularly suitable to connect two multimode STs for a fast, precisely, quality field connection.
2. Optical Cable Adaptor Feature and Benefits:
Switchable adapter interface, eliminating the need for hybrid cable assemblies
Easy cleaning and maintenance
Choose from square or rectangular mount design
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC-LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day. Free samples can be support for testing.
