Product Details:
|
| Model Name: | SC Male FC Female Fiber Optic Adapter | Fiber Counts: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Fiber Mode: | Single Mode |
| Durability: | >1000 Mating Times | Operating Temperature: | -40~75℃ |
| Adapter Mounting Type: | Reduced Flange | ||
| Highlight: | SC Male FC Female Fiber Optic Adapter,SM Duplex Hybrid Fiber Connector,SC Male FC Female Hybrid Fiber Connector |
||

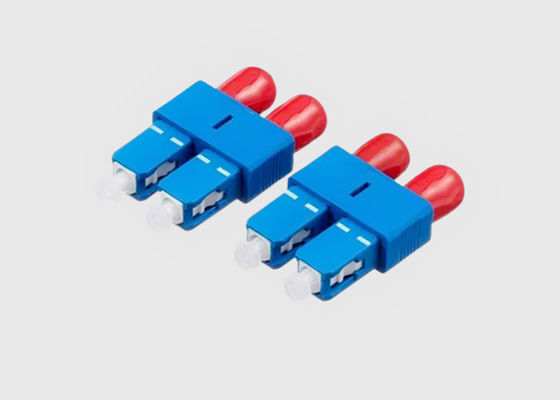

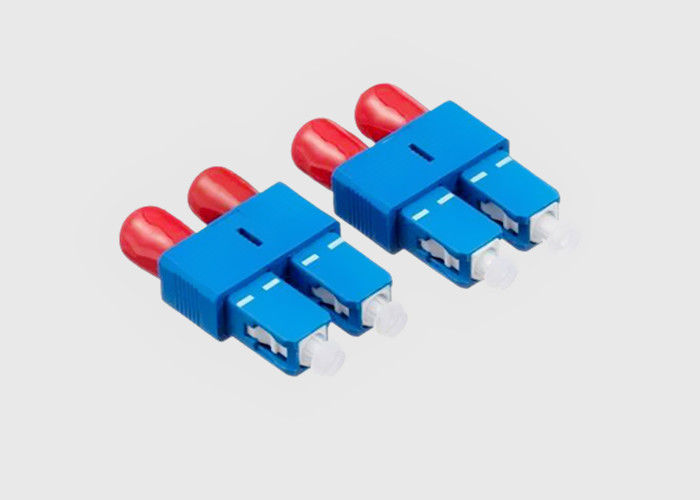

SC Male FC Female Fiber Optic Adapter SM Duplex Hybrid Fiber Connector
1. Product Overview:
This coupler consists of a sc duplex male on one end and a FC duplex male on the other end. It is typically used to connect a SC duple male port or coupler to a FC simplex male port or female coupler.
The ST to FC coupler is particularly suitable to connect two multimode STs for a fast, precisely, quality field connection. The ST adapters feature zirconia ceramic alignment sleeves which provide precision mating for multimode applications.
2. Optical Cable Adaptor Feature and Benefits:
Switchable adapter interface, eliminating the need for hybrid cable assemblies
Easy cleaning and maintenance
Choose from square or rectangular mount design
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC-LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day. Free samples can be support for testing.
