Product Details:
|
| Model Name: | Adapter Coupler FC SC Duplex Singlemode | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Male To LC Female | Fiber Counts: | Duplex |
| Color: | Blue,Steel | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | FC to SC Fiber Optic Coupler,Duplex Singlemode Optical Fiber Converter,FC SC Duplex Singlemode Optical Coupler |
||

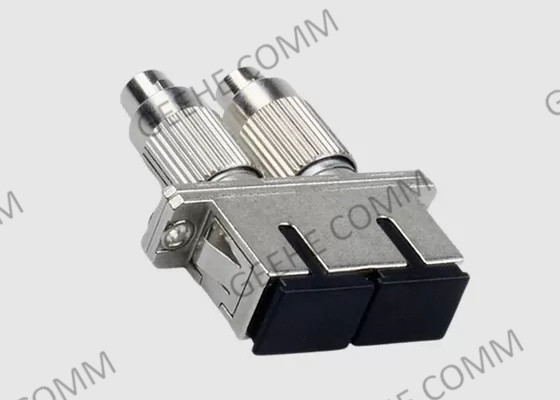

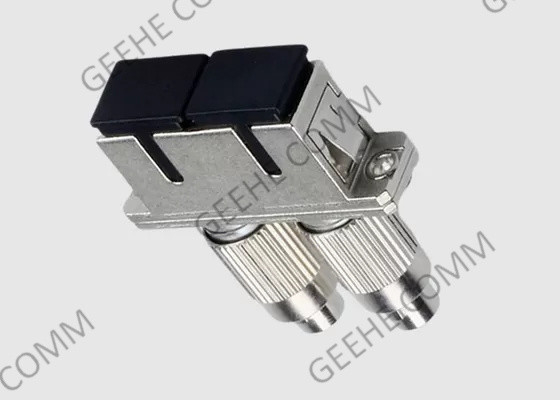

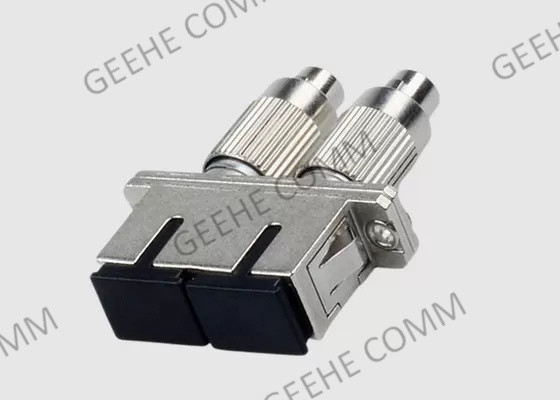

Shipping Today Factory Support Adapter Coupler FC SC Duplex Singlemode
1. Product Overview:
FC-LC Female to Female Duplex Hybrid Fiber Optic Adapter/coupler is passive device with both plastic housing and metal housing type. And these adapters possess the feature of stability and reliability.
All of Geehe's hybrid optical adapters have precision UPC or APC ceramic sleeves, in simplex and duplex style. They are widely used in the fiber optic links. We have storage for standard optic adapters, with hundreds on hand, our fiber optic adapters are ready to ship today.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
