Product Details:
|
| Model Name: | FC-ST Hybrid Adapters | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Female To ST Male | Fiber Counts: | Simplex |
| Dust Cap Color: | Yellow | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Rectangular Flange |
| Highlight: | FC to ST Hybrid Adapters,Hybrid Adapters With Rectangular Flange,Data Centers Fiber Hybrid Adapter |
||

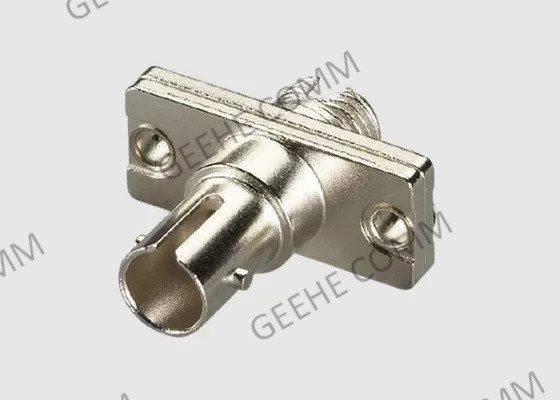

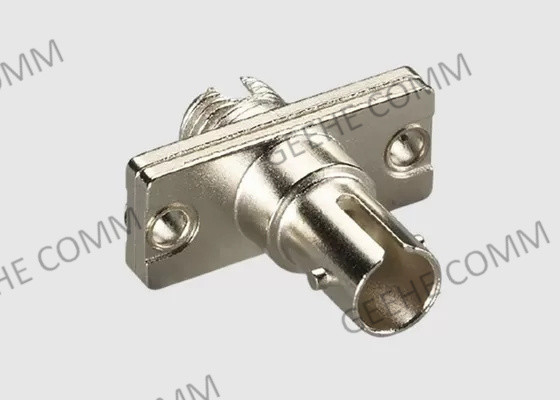

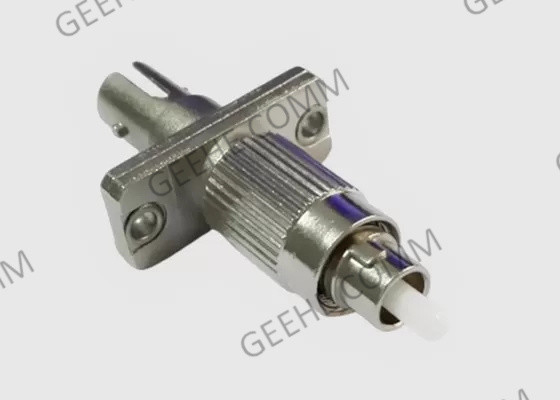

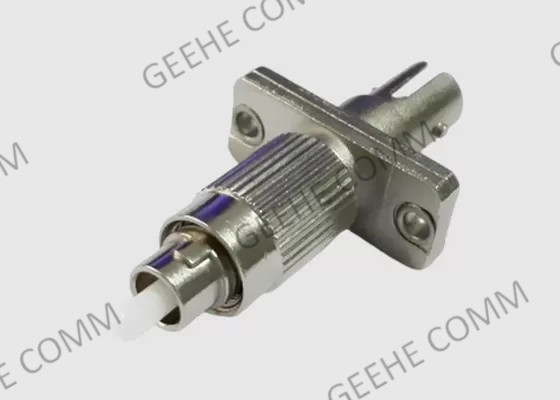

FC-ST Hybrid Adapters With Rectangular Flange For Datacenters
1. Product Overview:
FC/ST Hybrid Adapter offers a solution for any hybrid applications where FC interconnect systems are incorporated into ST system configurations or vice versa.
The adapter’s high-precision sleeve enables reliable ferrule mating of the FC and ST ferrule diameters, ensuring low insertion and return loss.
The FC/ ST adapter is available with square or rectangular flange, with key widths to suit most PC connectors.
The hybrid patch cords are available in SM PC/APC and MM PC. For the Standard, E-2000 versions.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
