Product Details:
|
| Model Name: | Armored Cable Assembly Fiber Optic Patch | Fiber Types: | G652-D, G657A1, G657A2, ULTRA, G655, OM1 Etc OM2, OM3, OM4 And Armored Cable |
|---|---|---|---|
| Connector Types: | SC/APC 8 Degrees, LC/APC,SC/PC, LC/PC, ST/PC Etc | Fiber Length: | 1m,1.5m,2m,3m,5m,10m,15m,20m Etc, Customization |
| Cable Size: | 0.9mm,2.0mm,3.0mm | Model: | Single Mode, Multi Mode |
| Jacket: | OFNR ,have PVC, LSZH, OFNP Options | Cable Color: | Yellow ,Aqua, Purple, Violet Or Customized |
| End-Face Type: | PC, UPC, APC | Standard: | Telcordia GR-326-Core |
| Highlight: | Outdoor Armored Sc Upc Patch Cord,Waterproof Outdoor Armored Patch Cord,Armored Sc Upc Patch Cord |
||

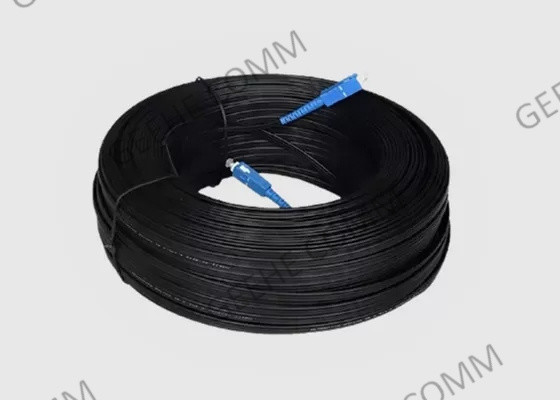

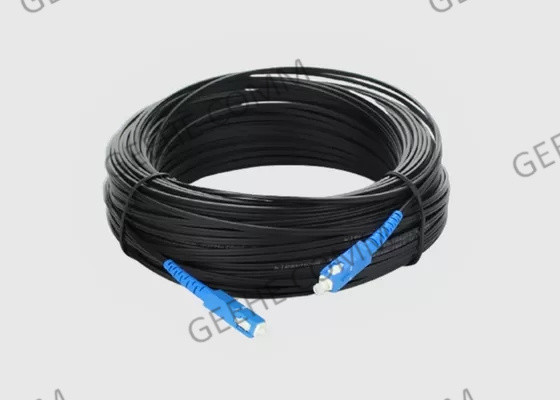

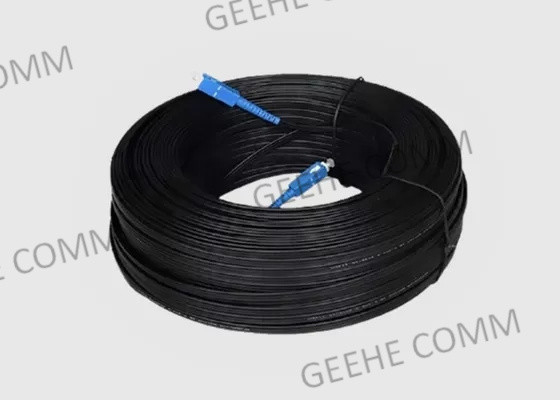

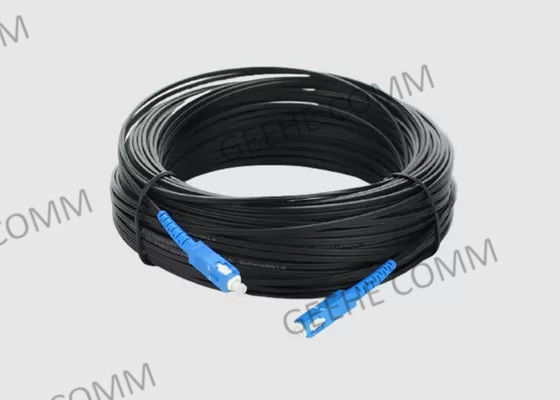

Waterproof Outdoor Armored Cable Assembly Fiber Optic Patch SC/UPC
1. Brief Introduction:
Preterminated Cable assemblies save a vast amount of time when used for field fiber installations. Expensive splicing or polishing equipment is not needed. This cable is built to your specified length and will include a pulling sheath for installation through conduit or raceways.
Highly durable and reliable for underground duct and lashed aerial installations, including direct burial in harsh conditions.
2. Single-Mode Fiber Optic Patch Cord Features:
3.Fiber Optic Patch Cord Applications:
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | FC/UPC,SC/UPC,LC/UPC,MU/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.25 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
SC To FC Fiber patch cord Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
5.Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX:OFC-S-FA-FC-09-1-0.5
