Product Details:
|
| Model Name: | Fiber Optic Patch Cord E2000 | Cable Diameter: | 1.8mm,2.0mm,3.0mm |
|---|---|---|---|
| Fiber Counts: | 2 Cores | Polishing: | UPC,APC,PC |
| Jacket Material: | PVC/LSZH/OFNR | Cable Length: | 1M,2M,3M...customize |
| Cable Dimensions: | 3.0mm | Jacket Color: | Yellow |
| Fiber Type: | Multimode 50/125 | ||
| Highlight: | 9/125 OS2 Fiber Optic Patch Cord,E2000 Fiber Optic Patch Cord,APC To LC APC e2000 patch cord |
||

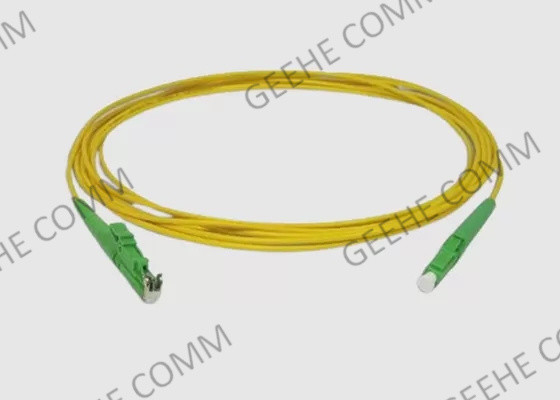

Singlemode 9/125 OS2 Fiber Optic Patch Cord E2000 APC - LC APC
1. Fiber Patch Cord Basic Introduction:
Passive Optic Item - Fiber patch cables, also known as fiber optic patch cords, fiber jumpers or fiber patch cords, is used to connect computer or equipment directly.
The E2000/APC-LC/APC Fiber Patch Cord Simplex SM 9/125µm 3.0mm 10m from Arestel is a Simplex patch cord with an E2000/APC connector at one side and a LC/APC connector at the other one. The connectors on both sides of the patch cord, allow it to be quickly connected to another device such as an optical switch or other telecommunications/computer device.
2. Fiber Optic Patch Cord
3. Fiber Patch Cord Application:
4.Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
6.Ordering Information:
