Product Details:
|
| Model Name: | ST APC – ST APC SINGLEMODE FIBER PATCH CORD | Sheath Material: | OFNR Riser |
|---|---|---|---|
| Cable Length: | 5m Or Customerized | Propagation Mode: | Multi Mode,Single Mode |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 2mm Or 3mm |
| Connector: | ST To ST | End-Face Type: | UPC,PC,APC |
| Jacket Color: | Orange Or Customerized | Service: | OEM&ODM |
| Highlight: | St Apc – St Apc Fiber Optic Patch Cord,Om2 2.0mm Fiber Optic Patch Cord,Om2 2.0mm apc patch cord |
||

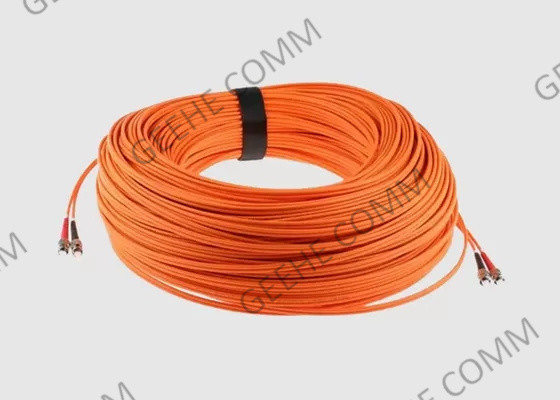

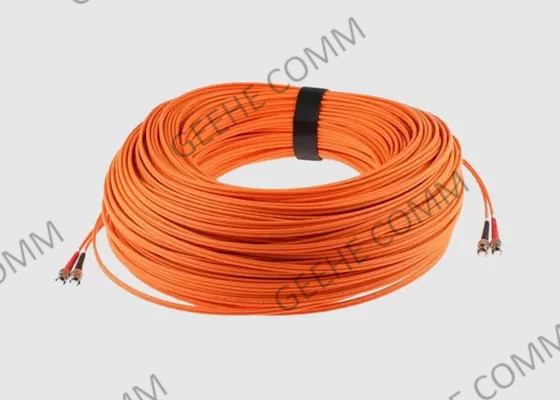

OM2 2.0MM OD SIMPLEX ST APC – ST APC SINGLEMODE FIBER PATCH CORD 10M
1. Basic Introduction:
ST/APC to ST/UPC connectors, this fiber patch cable is ready for deployment in any singlemode 9/125 network. Singlemode 9/125 are best used for long cable runs. This singlemode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize an APC (Angled Physical Contact) polish and UPC (Ultra Physical Contact) Polish. It has a yellow, riser rated, PVC, zipcord jacket.
APC Fiber Patch Cords support high speed data applications over installations that include entrance facilities, carrier equipment, telecommunications, patch field and CATV. The APC has been 100% factory inspected in end face geometry in compliance with Telcord- GR 326.
2. ST To ST Patch Cord Benefit & Features:
3. Fiber Optic Patch Cord Applications:
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. ST Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. Our Service:
Your patch cord selection is important to the type of fiber optic network you are working on. Some are ideal for single-mode, while others might be the right for a Multimode installation. Another factor to consider is the polished type when using single-mode cables.
While your patch cord choice is important, it is only one piece of the fiber-optic network to choose from. Take a look at what's available in these other key product categories:
7. Connector Type Abbreviations:
SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors, or Standard Connectors.
ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.
FC - was at one time the most popular single-mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment, and single-mode lasers.
LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single-mode cables. Also referred to as Lucent Connectors, Little Connectors, or Local Connectors, these snap-in connectors are typically used for high-density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
