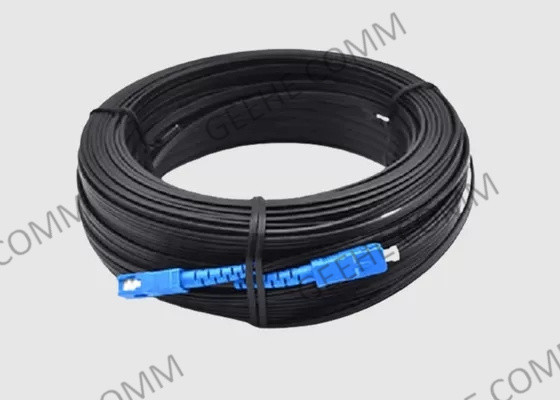

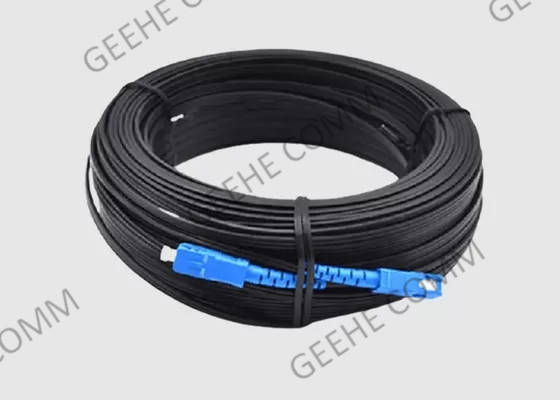

Corning Fiber G657A Single Mode OFNR Jacket Fiber Patch Leads SC To SC Simplex

Corning Fiber G657A Single Mode OFNR Jacket Fiber Patch Leads SC to SC Simplex

1. Fiber Patch Leads Basic Introduction:

Fiber optic cable assemblies are supporting simplex and duplex, fiber applications over extended distances, and next-generation backbones.

Geehe Fiber Patch Leads feature premium fiber that meets IEC - 60793-2-10, TIA-492AAAC (OM3), and TIA-492AAAD (OM4) specifications. In addition, these assemblies offer a superior connector polish that meets stringent Telcordia GR-326  and ISO:9001: 2015 /IEC specifications for end-face geometry and exceeds all ANSI/TIA and ISO/IEC insertion loss and return loss requirements.

Fiber optic leads and pigtails are also available in angled polish (APC) for FTTH, FTXX, PON, POL, CATV, LAN, Data centers, and WAN.

2. Fiber Patch Leads Benefit & Features:

• Fiber Construction
  Our standard patch cables are available in several different lengths and connector types. These fibers have a 900 µm jacket surrounded by a layer of Aramid yarn for extra protection. A 2.5 mm PVC cable jacket provides additional environmental protection.
• Custom Singlemode Patch Cables
  Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
• Excellent Performance
  Our Standard Patch Cables exhibit low attenuation while utilizing step-index fibers and also have a uniform core refractive index and a matched-clad profile.
• Popular Versions Available Off-the-shelf
  We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths of near UV 300, visible 488/514, 633, infrared 780, 820, 980, 1060, or 1300/1550 nm. If there is not a standard patch cable available for your application
• Fiber Type -- OM1, OM3, OM4, OS1/OS2

3.  SC-SC Fiber Optic Leads Specification&Technology Parameters

4. Ordering Information

5. Legacy ordering information

6. Fiber Optic Jumper Applications:

• Telecommunication Networks
• Cable Television (CATV)
• Premises Distribution
• Local Area Networks (LAN)
• Fiber -to the- Home (FTTx)
• Sensors
• Instrumentation
• Device pigtails
• Light delivery

7.  Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
