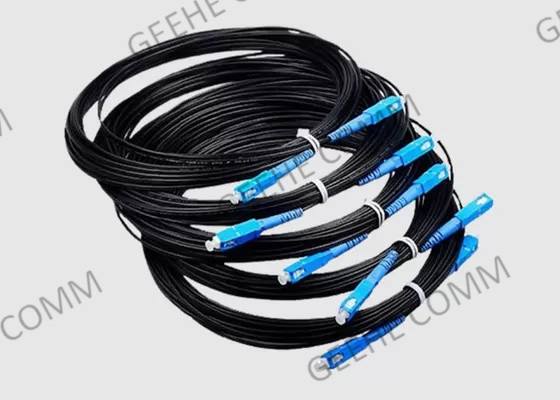

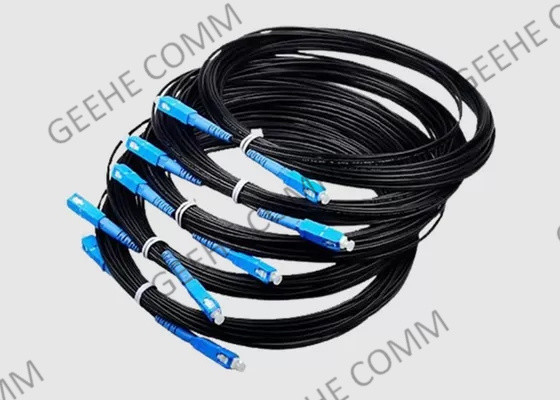

Singlemode G652A1 Fiber Patch Lead Types Simplex SC/UPC To SC/UPC

 Singlemode G652A1 Fiber Patch Lead Types Simplex SC/UPC to SC/UPC

1. Fiber Optic Patch Cables Basic Introduction:

Geehe manufactured with high-quality components, the Simplex SC to SC Single-Mode Fiber Optic Patch Cable is designed to offer reliable performance. This fiber optic patch cable features OFNR jackets and is fully tested to ensure reliable performance in critical applications.

Each fiber optic patch cable is constructed using Corning fiber shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag.

2. Fiber Optic Patch Cables Benefit & Features:

• Fiber Construction
  Our standard patch cables are available in several different lengths and connector types. These fibers have a 900 µm jacket surrounded by a layer of Aramid yarn for extra protection. A 2.5 mm PVC cable jacket provides additional environmental protection.
• Custom Singlemode Patch Cables
  Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
• Excellent Performance
  Our Standard Fiber Optic Patch Cables exhibit low attenuation while utilizing step-index fibers and also have a uniform core refractive index and a matched-clad profile.
• Popular Versions Available Off-the-shelf
  We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths of near UV 300, visible 488/514, 633, infrared 780, 820, 980, 1060, or 1300/1550 nm. If there is not a standard patch cable available for your application
• Fiber Type -- OM1, OM3, OM4,OM5, OS1/OS2

3. Fiber Optic Patch Cables Specification&Technology Parameters

4. Ordering Information

5. Legacy ordering information

6. Fiber Optic Patch Cables Applications:

• Metro
• Active device termination
• Test equipment
• Telecommunication networks
• Local Area Networks (LANs)
• Data processing networks
• Premise installations
• Wide Area Networks (WANs)
• Industrial, medical & military

7.  Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
