Product Details:
|
| Model Name: | 1×16 Optic Splitters FTTH | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×16 With FC Connector | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | FC/UPC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Outpu T - Gray, White, Red, Black |
| Highlight: | Corning Fiber ABS PLC Splitter,FTTH ABS PLC Splitter,Single Mode 1×16 Optic Splitters |
||

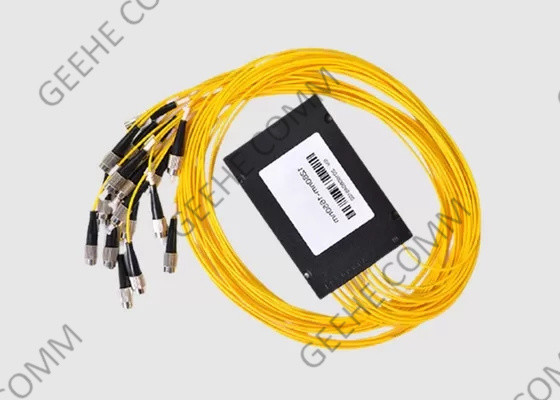

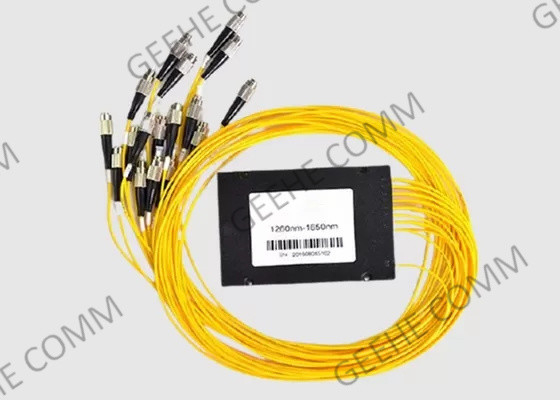

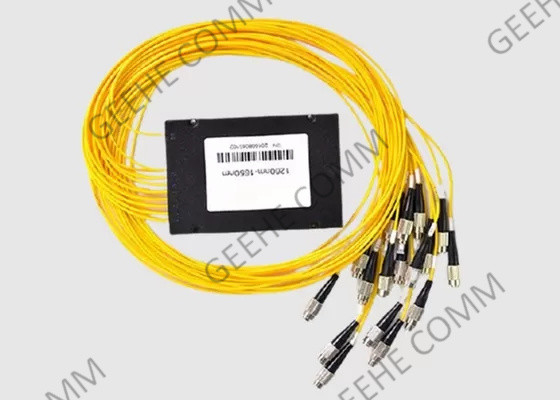

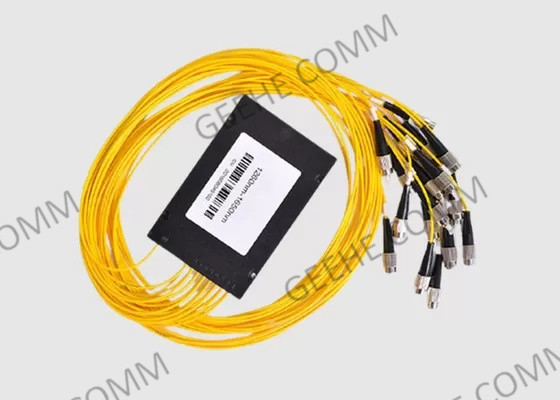

Corning Fiber ABS PLC Splitter Single Mode 1×16 Optic Splitters FTTH
1×16 Optic Splitter Basic Information:
1× 16 PLC Splitters are branching devices that are used to distribute optical signals to multiple locations for processing. They are designed for FTTx Passive Optical Networks, CWDM, DWDM, and optical cable TV Systems.
Geehe 1×16 PLC splitter performs superbly across temperatures and wavelengths providing low insertion, ow PDL, excellent uniformity, and low return loss. They come in various configurations of 1X2, 1X4, 1X8.1X16 …up to 1X64.
Package method: Steel tube, ABS Box, Patch panel, LGX.
1×16 PLC Splitter Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
1×16 ABS Box PLC Splitter Features& Benefits:
* Corning fiber
* LGX Compatible
* Low Insertion and Excess Loss
* 1 inlet port, 16 outlet ports
* Bidirectional, Compact
* Wide Wavelength Range, High Uniformity
* Indoor or outdoor UV rated and waterproof rated
* Environmentally Stable
* Telcordia GR-1221-Core Compliant
* Even or Various Splitting Ratios
ABS Box PLC Splitter Application&Standard:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
- Long-Haul Tele/Data Communications
- Fiber Optic Equipment and Systems
- CATV Systems
- Local Area Network, PON, and FTTH
- Fiber Sensors
- DWDM Networks
ABS Box Optic Splitter Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
ABS Box PLC Splitter Package:
Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
5) Fast Deliver&after service
Turnover for the orders are fast, within 8 hours can confirm deliver time for all customers, 24/7 after service online.
