| Model Name: | 1x32 SC-UPC Fiber Optical PLC Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×32 | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | SC/UPC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | SC-UPC Fiber Optical PLC Splitter,1x32 Fiber Optical PLC Splitter,SC UPC 1x32 plc splitter |
||

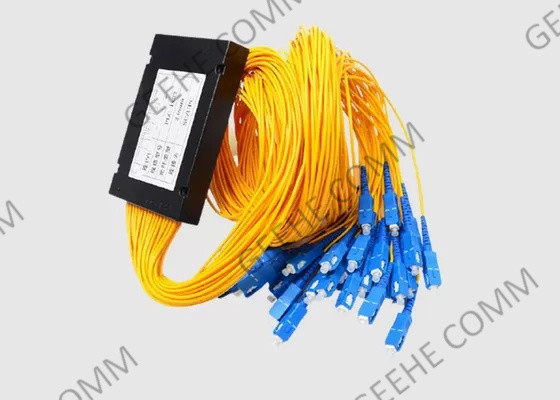

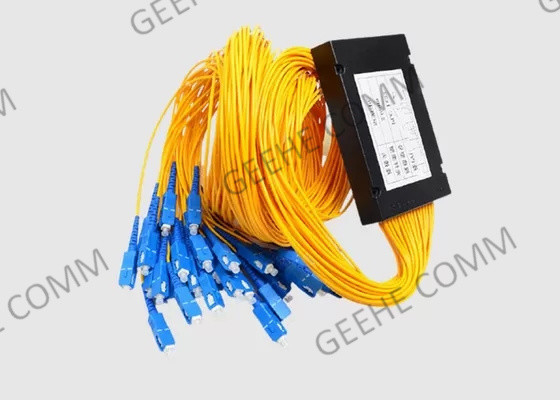

1x32 SC-UPC Fiber Optical PLC Splitter Module Single Mode Corning Fiber
Basic Information
This PLC Splitter is a 1x32, with 1 input and 32 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are available with 900µm loose tube single-mode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.
1xN and 2xN PLC splitters, such as 1×4, 1×8, 1×16, 2×32, 2×64, etc are available.
ABS Module PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |

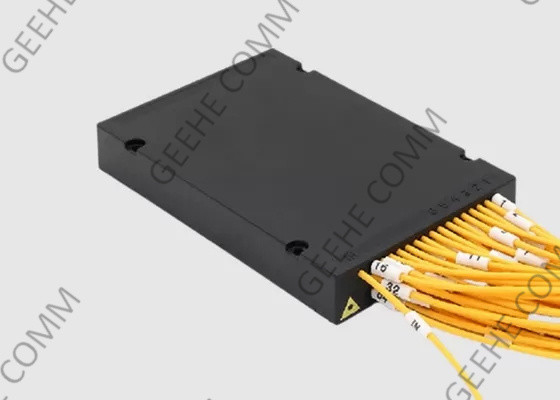

ABS PLC Splitter Package:
