Product Details:
|
| Model Name: | Quad Coupler Ceramic Fiber Optic Adapters | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC(UPC),LC/UPC(UPC),FC/APC(UPC), Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | LC-LC OS1 Quad Coupler,Duplex Singlemode Quad Coupler,OS1 Ceramic Fiber Optic Adapters |
||

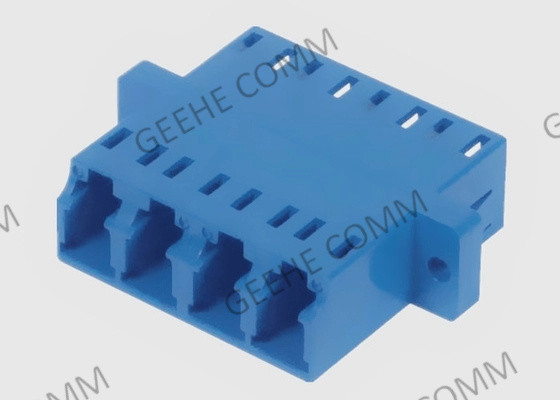

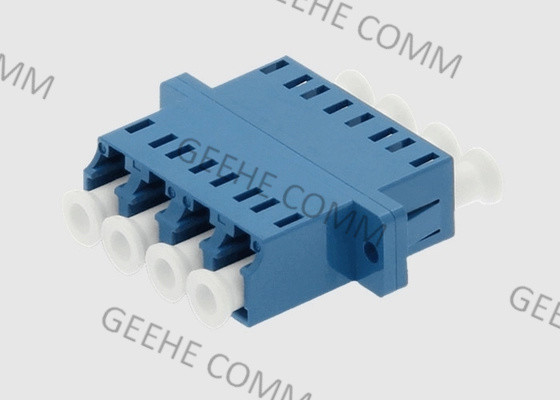

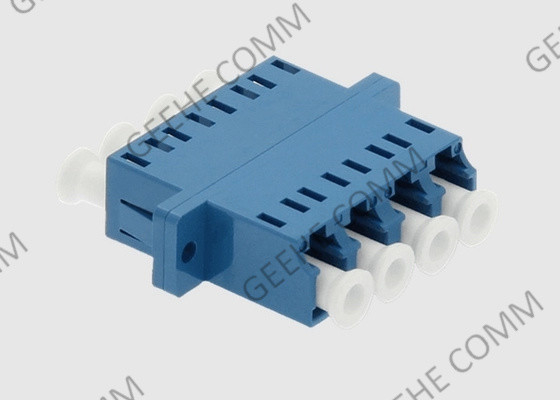

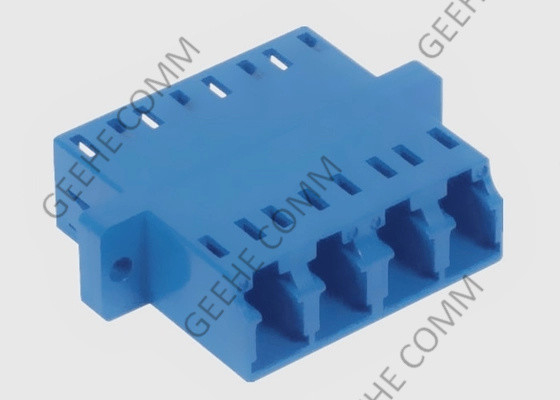

Duplex Singlemode LC-LC OS1 Quad Coupler Ceramic Fiber Optic Adapters
1. Product Overview:
Fibre optic cable adapters are used to provide cable-to cable connection. Geehe has a wide range of high-quality Fibre adapters which are equipped with precision alignment sleeves and improved reconnect ability.
Fiber optic adapters are typically connecting cables with similar connectors (SC to SC, LC to LC, etc.). Some adapters, called “hybrid”, accept different types of connectors (ST to SC, LC to SC, etc.). When the connectors have differing ferrule sizes (1.25mm to 2.5mm), as found in LC to SC adapters, the adapters are significantly more expensive because of a more complicated design/manufacturing process.
LC/UPC To LC/UPC Adapter Multimode Duplex SC-Type Fiber Optic Coupler 0.2dB insertion loss . High-precision Ceramic Sleeve Top-level ceramic sleeve ensures stable optical performance. Fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | LC |
| End-face | UPC/PC |
| Mode | Single-mode |
| Sleeve | Zirconia ceramic |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
| Repeatability | ≤0.2dB |
| Service life | ＞1000 |
| Plug | 1-2.5 N |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
