Product Details:
|
| Model Name: | SC APC Fiber Optic Adapter | Mode Type: | Single Mode |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | SC Male To SC Female | Fiber Counts: | Simplex |
| Color: | Blue,Steel | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | SC UPC Fiber Optic Cable Adapter,Simplex Fiber Optic Cable Adapter,Single Mode adapter sc upc |
||

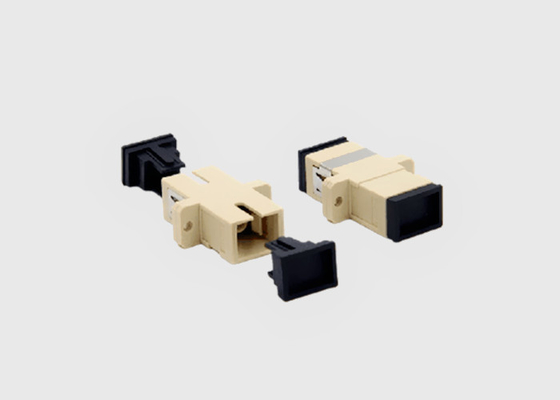

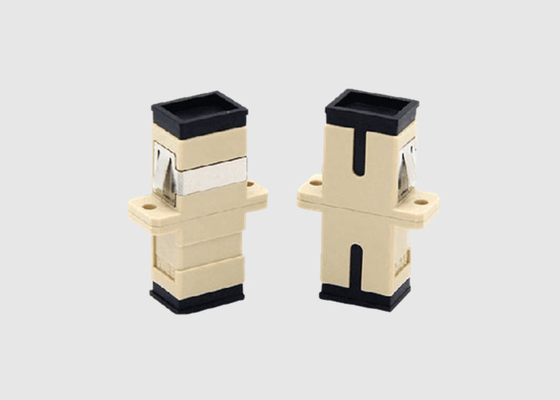

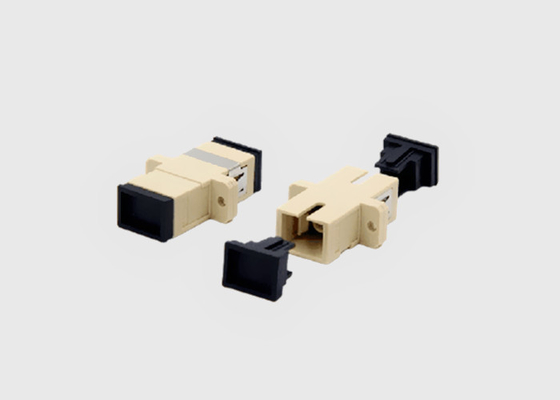

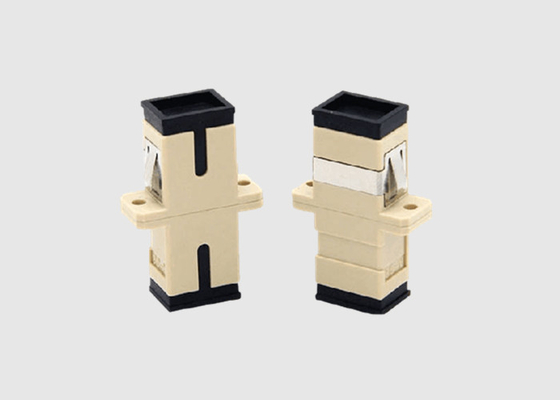

Single Mode Simplex Color Beige SC UPC Fiber Optic Adapter With Flanges
1. Product Overview:
Geehe Optical Fiber Mating Adapter/Sleeve is used to connect two connectorized fibers together with low loss. This model has an SC/APC female fiber connector on each end. It Can be used for single-mode or multi-mode connectorized fibers.
This coupler provides a solution for extending a current run of fiber optic cabling. This coupler is constructed from high-grade plastic and has been designed and engineered for durability and long life.
2. SC Optical Cable Adaptor Feature and Benefits:
3. LC Fiber Optic Adapter Applications:
- High-speed transmission systems
- FTTx (FTTA, FTTB, FTTC, FTTO, FTTH,..)- CATV
- Telecommunication networks
- Test equipment
- Metro
- Local Area Networks(LANs)
- Data processing networks
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6. More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
