Product Details:
|
| Model Name: | Fiber Optic SC/SC Duplex Coupler | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | SC Male To SC Female | Fiber Counts: | Duplex |
| Color: | Blue,Steel | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | Multi Mode SC SC Duplex Coupler,Beige SC SC Duplex Coupler,sc coupler duplex With Flange |
||

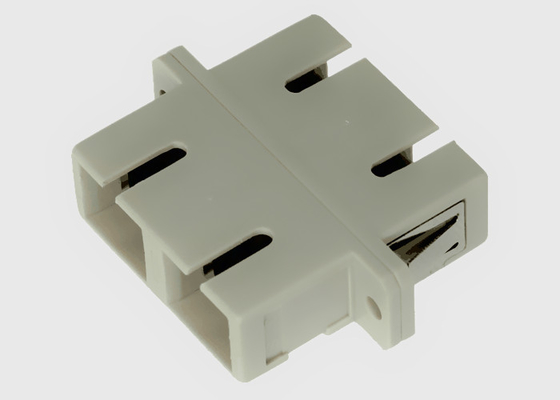

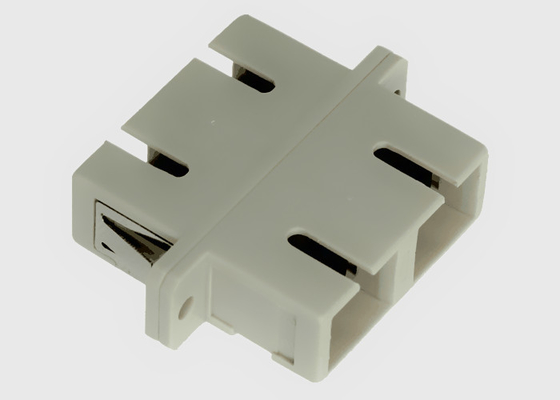

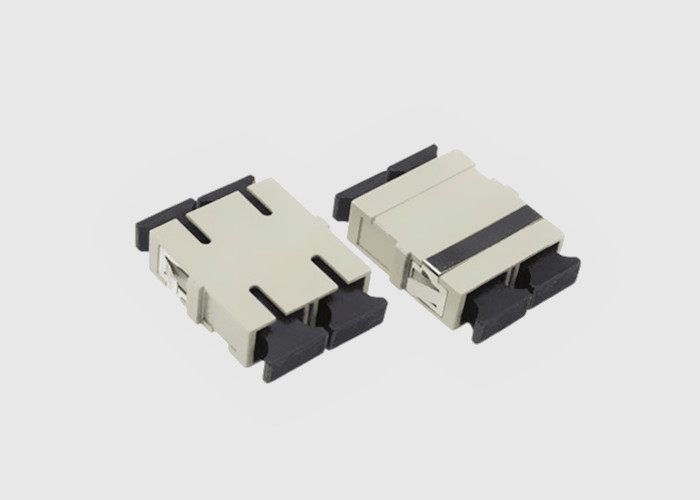

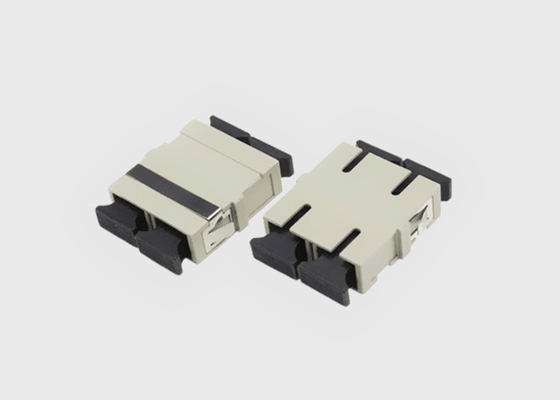

Multi-Mode Beige Fiber Optic SC/SC Duplex Coupler With Flange
1. Product Overview:
The SC adaptors from Geehe Comm allow the accurate SC connectors alignment without compromising light continuity.
They fix and ensure secure connectors have no disconnections, the bronze sleeve SC adapters are generally multimode types. SC Adapters are manufactured in accordance with the requirements of IEC, and ANSI/TIA/EIA. They are designed with bronze sleeves or zirconia ceramic depending on the application. Used for high-density applications.
2. SC Optical Cable Adaptor Feature and Benefits:
3. SC Fiber Optic Adapter Applications:
- FTTx (FTTA, FTTB, FTTC, FTTO, FTTH,..)
- CATV
- Telecommunication networks
- Test equipment
- Metro
- Local Area Networks(LANs)
- Data processing networks
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
