Product Details:
|
| Model Name: | Beige Fiber Optic Cable Adapter | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow, Violet Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC(UPC),LC/UPC(UPC),FC/APC(UPC), Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | Beige OM3 Fiber Optic Cable Adapter,LC UPC iber Optic Cable Adapter,OM3 MM lc upc adapter |
||

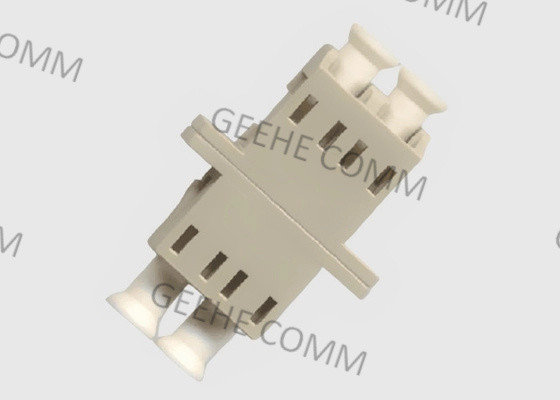

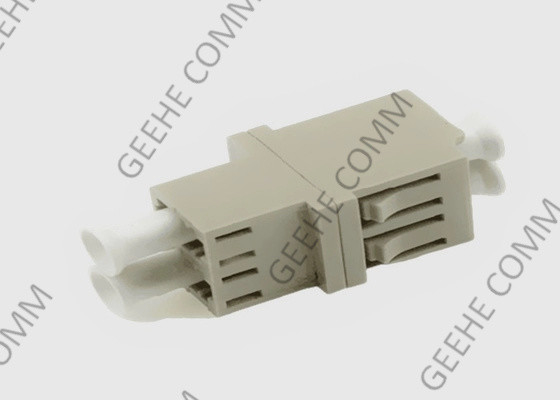

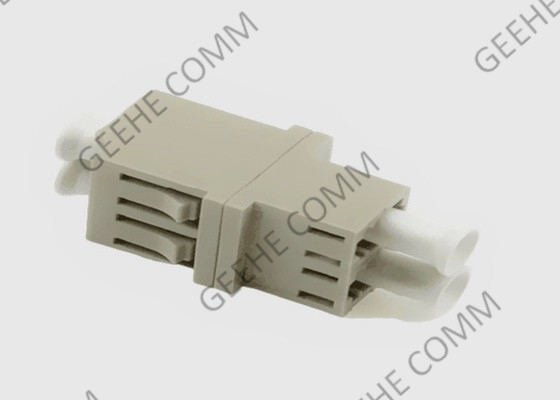

MM LC UPC Duplex Beige OM3 Fiber Optic Cable Adapter with Flanges
1. Product Overview:
Fiber optic adapter (also called fiber optic coupler), is a medium designed to connect two fiber optic cables or fiber optic connectors together. It provides a great solution to meet the growing demand for the small form factor, high-density fiber optic connectivity.
This LC OM3 adapter allows you to patch together duplex OM3 LC connectors or LC fiber patch cables quickly. This LC OM3 coupler is particularly suitable to connect two multimode OM3 LCs for a fast, precisely, quality field connection. The LC adapters feature zirconia ceramic alignment sleeves which provide precision mating for multimode applications. They are suitable for fiber patch panel applications.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | LC |
| End-face | UPC/PC |
| Mode | Single-mode |
| Sleeve | Zirconia ceramic |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
| Repeatability | ≤0.2dB |
| Service life | ＞1000 |
| Plug | 1-2.5 N |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6. More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
