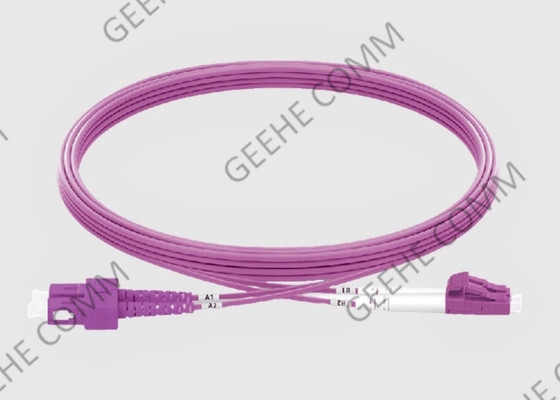

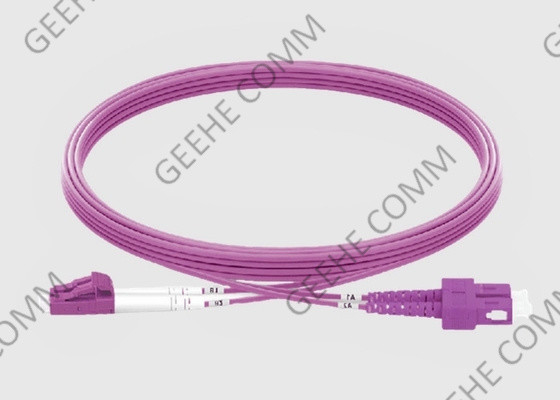

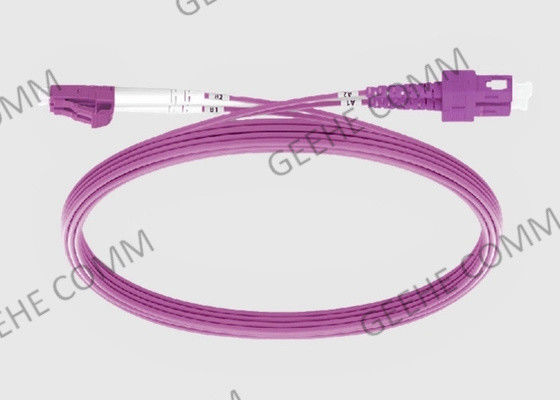

20M Duplex Multimode PVC (OFNR) 2.0MM Fiber Patch Cable SC To LC

 20M Duplex Multimode PVC (OFNR) 2.0MM Fiber Patch Cable SC to LC

1. Brief Overview:

• 50/125 OM4 40/100Gb Multimode fiber patch cables are crafted and designed for fast Ethernet connections, Fiber Channel, Gigabit Ethernet, data center, backbone, university campus, commercial, Local Area Networks, SAN, and other applications. It supports video/data and voice services.
• This fiber meets TIA/EIA 492AAAD, and IEC60793-2-10 A1a.3a standards and complies with all RoHS environmental regulations.
• OM4 fiber patch cords operate at -20°C to +70°C and have a MIN Installation bend ratio of 5.0 cm and a MIN Long-term bend ratio of 3.0 cm.
• OM4 laser-optimized fiber patch cables are designed to be used in Local Area Networks, WAN, and SAN 10 gigabyte networks and are designed to handle the most challenging telecom data transmission.
• LC duplex assemblies are attached with easy-removable clips.
• All fiber optic patch cords have 3D test before shipping.

2. SC To LC Patch Cord Benefit & Features:

• ​Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

3. Fiber Optic Patch Cord Applications:

• Fiber Network Deployments
• Fast Ethernet
• Gigabit Ethernet
• Other Data Applications Requiring High Transfer Rates
• CATV System
• Telecommunications
• Optical Networks
• Testing / Measurement Instruments
• FTTH(Fiber To the Home)

4. Specification&Technology Parameter

* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.

* The default connector key is aligned to the slow axis.

5. LC&SC Connector Specification& Technology Parameter​:

6. LC Patch Cord Ordering Information:

* EX: OFC-D-LA-LA-09-0-1.0

7. How to choose Fiber patch cords?

1)Fiber Cable Mode: Single Mode or Multimode

The mode of fiber patch cables indicates how light beams travel within the fiber. There are two fiber cable modes: single mode and multimode.

2)Number of Fiber Strands: Simplex or Duplex

According to the number of fiber strands, there are simplex and duplex fiber patch cord. As shown in Figure 2, simplex fiber patch cord contains one single strand of fiber with one simplex connector on each end. It can be linked with a pair of BiDi transceiver modules featuring with one port. Whereas duplex fiber patch cord consists of two strands of glass or plastic with one duplex connector (or considered as two simplex connectors). It is often linked with common transceivers or dual fiber BiDi transceivers.

3) Choose the Right Cable Jacket Type (PVC/LSZH/OFNP/Armored)
Usually, there are three cable jacket types: Polyvinyl Chloride (PVC), Low Smoke Zero Halogen (LSZH) and Optical Fiber Nonconductive Plenum (OFNP). You can see there features in figure below and choose the right one for your network.

4) Connector Type: LC, SC, ST or Others

There are many connector types used in fiber patch cables such as LC, SC, ST, MTP or MPO listed in this article How Many Fiber Connector Types Do You Know? Aside from these connectors, there is a latest connector design called MDC connector, which enables the highest achievable connector density by delivering a 3X advantage over a standard LC connector. The different connector types are to plug into different interfaces, so you’d better affirm the interface type of the devices you are using the first time.

5) Choose the Right Connector Polish Type (UPC/APC)
Since the loss of the APC connector is lower than UPC connectors, usually, the optical performance of APC connectors is better than UPC connectors. In the current market, the APC connectors are widely used in applications such as FTTx, passive optical network (PON) and wavelength-division multiplexing (WDM) that are more sensitive to return loss. But APC connector is usually expensive than UPC connector, so you should weigh the pros and cons. With those applications that call for high precision optical fiber signaling, APC should be the first consideration, but less sensitive digital systems will perform equally well using UPC. Usually, connector color of APC patch cable is green, and of UPC patch cable is blue.

8. Geehe Factory Services:

High-level OEM service for brands.

• Our pre-terminated cables are very cost-effective and save you money in numerous ways
• Eliminating your labor costs associated with installing connectors in the field
• Eliminating the need for technicians to spend time and money re-doing work that has failed
• Reducing the cost of additional connectors and supplies to replace failed splices.
• The pre-terminated cables can be manufactured to any length needed.
