Product Details:
|

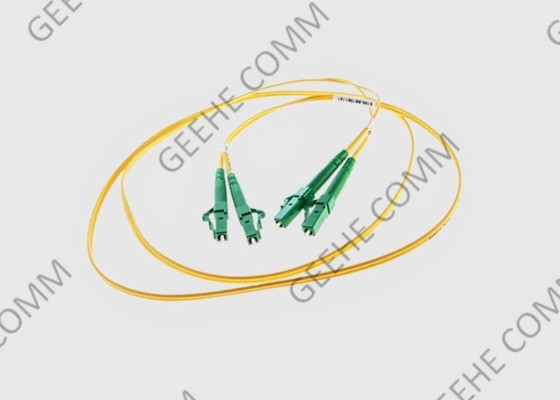

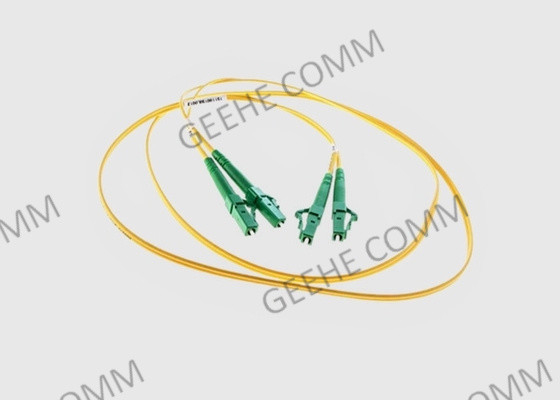

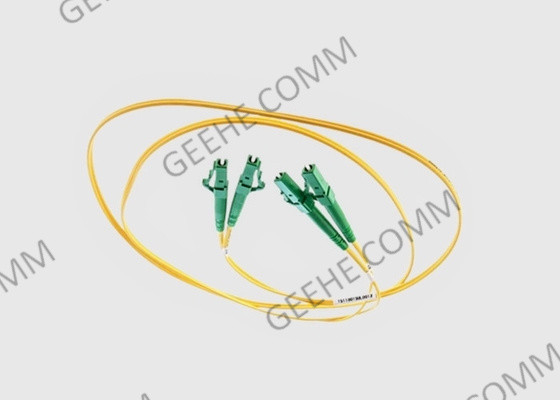

| Model Name: | 100M Fiber Patch Cord | Sheath Material: | LSZH PVC |
|---|---|---|---|
| Cable Length: | 1m Or Customized | Number Of Fibers: | 2 |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 1.6mm, 2mm Or 3mm |
| Color: | Yellow | Jacket Material: | PVC,Riser (OFNR), Plenum (OFNP), LSZH |
| Side A - Connector 1: | LC APC DUPLEX | Side B - Connector 1: | LC APC DUPLEX |
| Highlight: | Duplex 100M Fiber Patch Cord,Multimode PVC Fiber Patch Cord |
||
1. Basic Introduction:
Duplex fiber optic cable (DX) singlemode (SM). It has two ST/PC connectors at both ends. Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free). Section of the central core and its coating, of 9/125 microns. Total section of each 3.0 mm cable (including kevlar fiber and yellow sheath). Coil length 100m.
Industry standard – OS2 (Yellow Jacket) 2mm jacket, connectors – LC, SC, ST, E2000.
Connector configurations include – LC/LC, LC/SC, LC/ST, SC/SC, ST/SC and ST/ST
Cable Products can assemble multimode fiber optic cables to custom connector configurations and lengths – from 6″ long to whatever length(s) you require.
2. LC To LC Patch Cord Benefit & Features:
3. Fiber Optic Patch Cord Applications:
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,FC/UPC,SC/UPC,MU/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550,980 or 1060,850,780 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 55 | ||||
| Min.Return Loss(APC) (dB) | 65 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. LC&SC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3; MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. LC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA: LC/APC LC:LC/UPC LP:LC/PC |
LA:LC/APC LC:LC/UPC LP:LC/PC |
09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX: OFC-D-LA-LA-09-0-1.0
7. How to choose Fiber patch cords?
1)Fiber Cable Mode: Single Mode or Multimode
The mode of fiber patch cables indicates how light beams travel within the fiber. There are two fiber cable modes: single mode and multimode.
2)Number of Fiber Strands: Simplex or Duplex
According to the number of fiber strands, there are simplex and duplex fiber patch cord. As shown in Figure 2, simplex fiber patch cord contains one single strand of fiber with one simplex connector on each end. It can be linked with a pair of BiDi transceiver modules featuring with one port. Whereas duplex fiber patch cord consists of two strands of glass or plastic with one duplex connector (or considered as two simplex connectors). It is often linked with common transceivers or dual fiber BiDi transceivers.
3) Choose the Right Cable Jacket Type (PVC/LSZH/OFNP/Armored)
Usually, there are three cable jacket types: Polyvinyl Chloride (PVC), Low Smoke Zero Halogen (LSZH) and Optical Fiber Nonconductive Plenum (OFNP). You can see there features in figure below and choose the right one for your network.
4) Connector Type: LC, SC, ST or Others
There are many connector types used in fiber patch cables such as LC, SC, ST, MTP or MPO listed in this article How Many Fiber Connector Types Do You Know? Aside from these connectors, there is a latest connector design called MDC connector, which enables the highest achievable connector density by delivering a 3X advantage over a standard LC connector. The different connector types are to plug into different interfaces, so you’d better affirm the interface type of the devices you are using the first time.
5) Choose the Right Connector Polish Type (UPC/APC)
Since the loss of the APC connector is lower than UPC connectors, usually, the optical performance of APC connectors is better than UPC connectors. In the current market, the APC connectors are widely used in applications such as FTTx, passive optical network (PON) and wavelength-division multiplexing (WDM) that are more sensitive to return loss. But APC connector is usually expensive than UPC connector, so you should weigh the pros and cons. With those applications that call for high precision optical fiber signaling, APC should be the first consideration, but less sensitive digital systems will perform equally well using UPC. Usually, connector color of APC patch cable is green, and of UPC patch cable is blue.
8. Geehe Factory Services:
High-level OEM service for brands.
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
