Product Details:
|
| Model Name: | Fiber Optic Attenuator Multimode | Connector Gender: | Fiber Optic Attenuator Single Mode |
|---|---|---|---|
| Coupling Face: | APC Or UPC | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Blue,Green, Beige |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Quality Standard: | IEC 61754-13 | Mating Durability: | <0.2dB |
| Highlight: | 9dB Fiber Optic Attenuator,LC/UPC Fiber Optic Attenuator,9dB optical fiber attenuator |
||

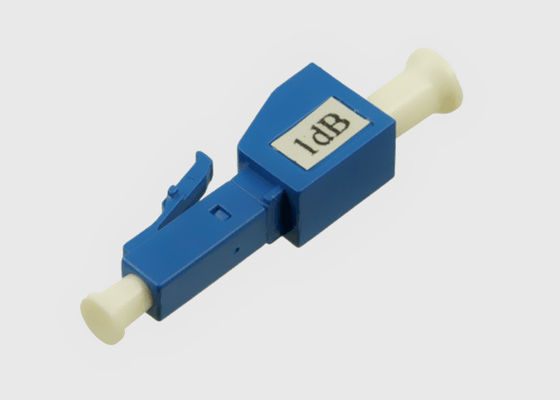

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode
Product Description:
An optic attenuator is a fiber optic device used to reduce the power level of an optical signal in an optical fiber. Geehe’ offers both variable and inline fixed single-mode (SM) and Polarization Maintaining (PM) fiber-based attenuators.

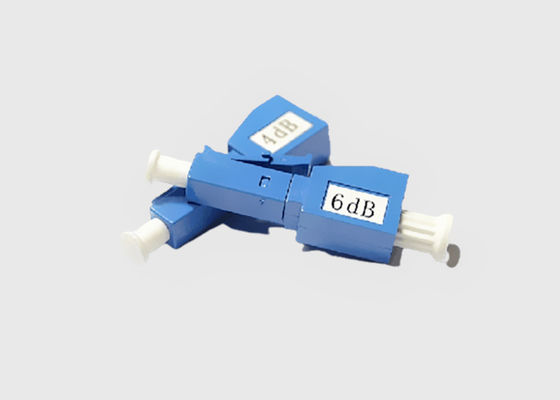

The fixed fiber optic attenuator consists of an LC simplex male on one end and an LC simplex female on the other end. It is typically used to either test power levels or reduce the power levels of an optical signal.
The LC UPC fiber attenuator contains doped fiber and suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. We have a mature attenuator production process, and can fully meet customer needs.
Attenuators enable the installer to adjust the optical power level without changing the other components, or cutting and splicing the fiber.
LC /UPC Attenuator Features And Benefits:
Suitable for panel installation.
Removable structure
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
LC UPC Attenuator Application:

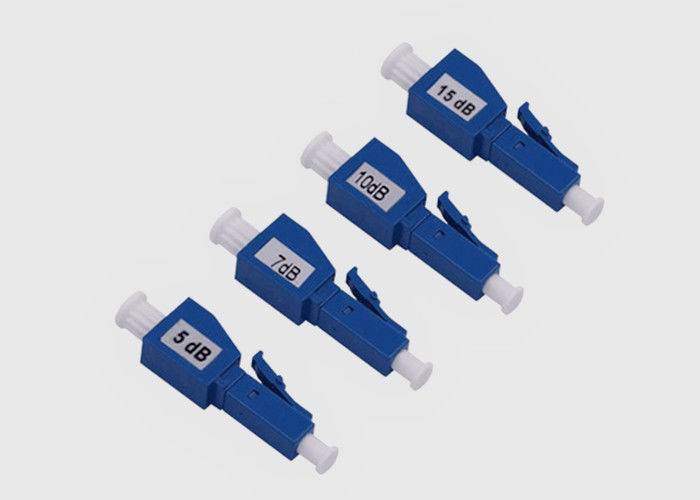

More Choices of Optic Attenuator:
