Product Details:
|
| Model Name: | SC Fixed Fiber Optic Attenuator | Connector Gender: | Fixed Female To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | SC Fixed Fiber Optic Attenuator,SC Fiber Optic Attenuator Singlemode,ISO9001 Fixed Fiber Optic Attenuator |
||

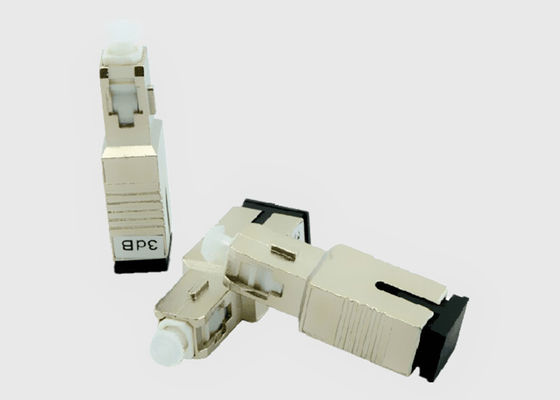

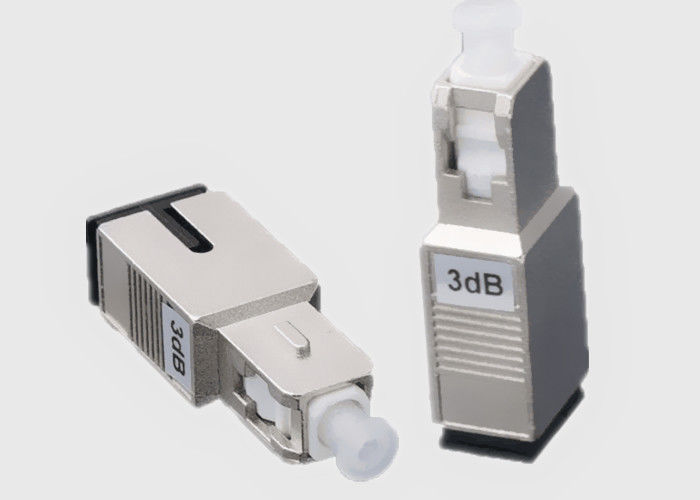

SC Fixed Fiber Optic Attenuator (Singlemode, Male to Female, APC, 1~25dB)
Product Description:
Fiber optic attenuators are devices to reduce the optical fiber power by a certain level within the fiber-optic network. Fiber Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements.
This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.
This SC APC fiber attenuator contains doped fiber and is suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. We have a mature attenuator production process, and can fully meet customer needs. Each SC APC attenuator is shipped with a test report that makes it easy for customers to check the optical performance quickly.
SC Optic Attenuator Feature And Benefits:
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:

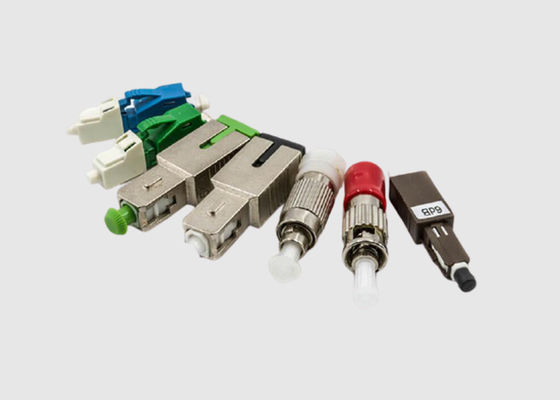

More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
