Product Details:
|
| Model Name: | MU UPC Fixed Fiber Optic Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | MU UPC Fixed Fiber Optic Attenuator,RoHS Compliant Fixed Fiber Optic Attenuator,5dB Single Mode Fiber Optic Attenuator |
||

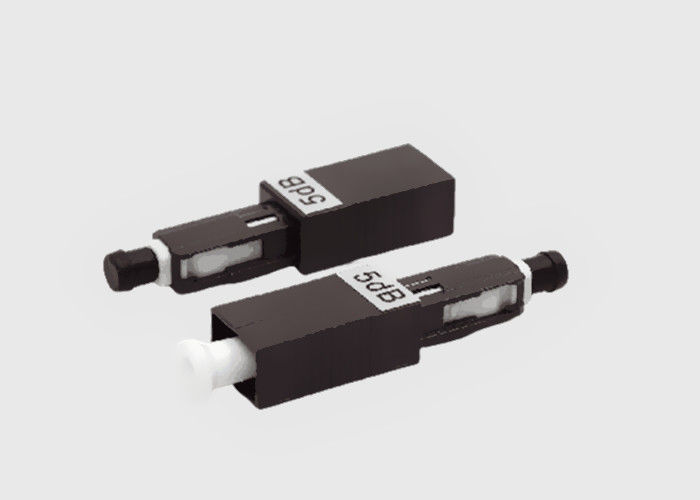

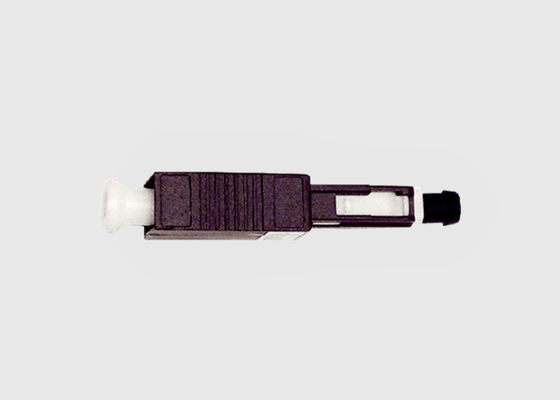

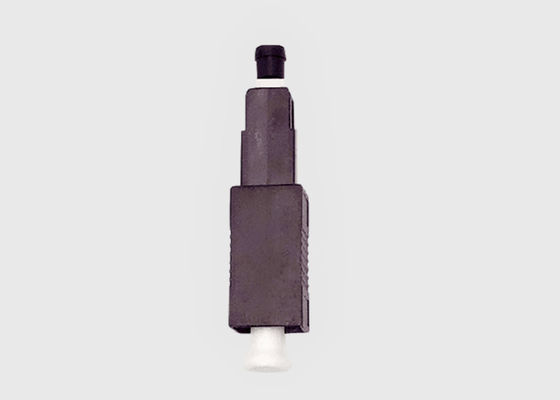

RoHS Compliant 5dB Single Mode MU UPC Fixed Fiber Optic Attenuator
Product Description:
The MU fiber optic attenuator for single-mode applications attenuation level ranges from 1dB to 30dB.
This MU attenuator can work at the 1240nm to 1620nm range, including the typical SMF 1310nm and SMF1550nm.MU fiber optic attenuators feature high return loss, high power light source durability, and wavelength independence. They are suited to use with EDFA, DWDM, and other fiber optic communication systems to reduce the optical light power at a fixed level. The MU fiber attenuators manufacture by Aminite are a good price and prompt delivery.
These high-performance attenuators are compliant with Telcordia GR-910-CORE and fully compatible with all MU connectors and adaptors.
Optic Attenuator Feature And Benefits:
Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
MU UPC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
