Product Details:
|
| Model Name: | MU Fiber Optic Cable Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | 5dB Fixed Fiber Optical Attenuator,Fiber Optical Attenuator Male to Female,Fiber Optical Attenuator For CATV |
||

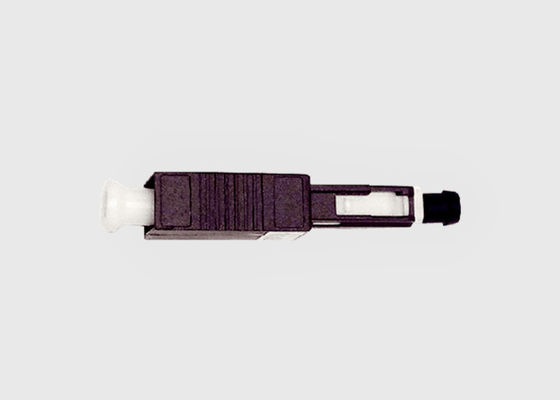

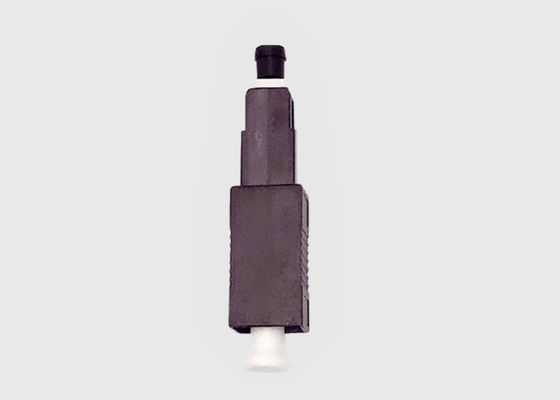

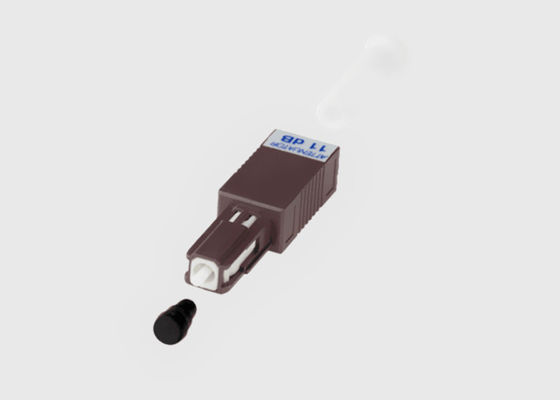

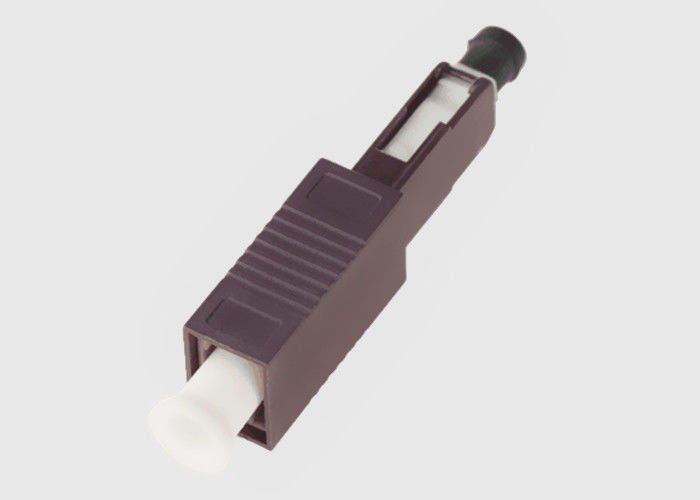

Types Of Fiber Optical Attenuators Male-Female 5dB For CATV
Product Description:
Geehe Fiber Optic Fixed Attenuator is one end of the connector type and the other end of the adapter type, and the attenuation value is adjustable. This range of fixed attenuator is mainly used to reduce optical power to the target value in optical links.
The Fixed Optic Attenuator 15 dB (Male to Female Variation Scale 0 ~ 30 dB) is mainly used in communication systems to reduce optical power launched onto the photodetector and provides an accurate attenuation over a wide range of wavelengths. The plug type configuration allows them to be used directly on the end of a patch cord, which in turn can insert directly into an adaptor. It is available in FC, SC, LC, ST, and MU connector styles with PC or APC polished providing the ultra-low return loss. This compact attenuator has low back reflection and high power endurance.
Optic Attenuator Feature And Benefits:
Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
MU UPC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
