Product Details:
|
| Model Name: | Plug Type Fiber Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Mounting Style: | Inline | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Blue,Green, Beige |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Connector A: | SC/APC Simplex | MOQ: | 1PC |
| Highlight: | FTTH Plug Type Fiber Attenuator,12dB LC APC Fiber Attenuator,Singlemode Plug Type Fiber Attenuator |
||

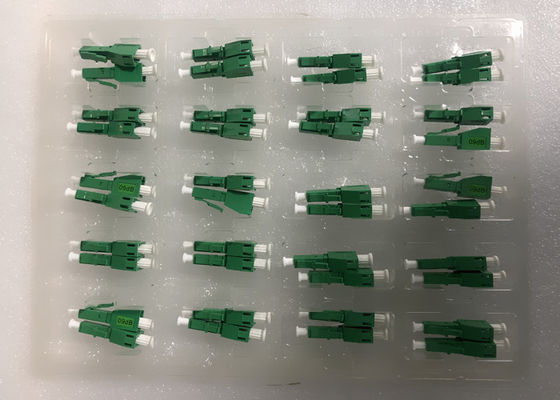

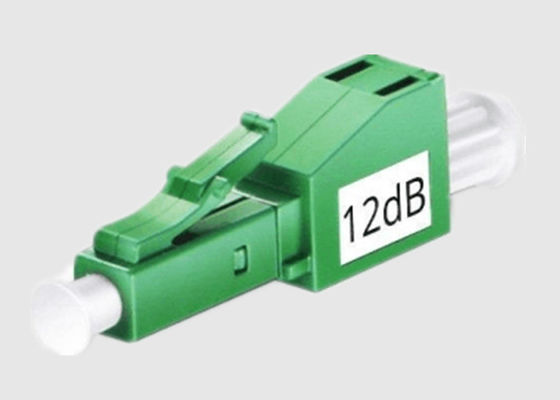

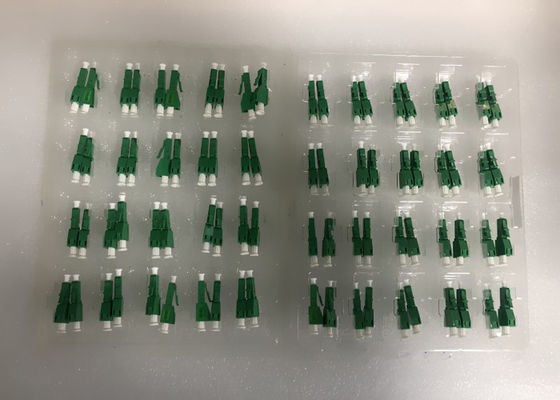

FTTH 12dB LC APC Singlemode Plug Type Fiber Attenuator
Product Description:
Plugin attenuators
These quality attenuators are capable of withstanding over 1W of high power light exposure for extended periods of time. They provide excellent optical characteristics including low polarization Dependent Loss(PDL) and stable and independent wavelength distribution. Connectors styles include SC, FC LC, and MU.
Please use the attenuators in CATV, LAN, WAN, and telecommunications applications. When you have multiple fiber runs, use the attenuators to make sure all are operating at the same optical level. You can also use the attenuators as part of your test kits to verify optical levels.
LC Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type |
LC: LC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
LC APC Attenuator Application:
More Types Of Optic Attenuator:
Attenuator Related Products:
- LC/UPC, LC/APC Attenuators
- SC/UPC, SC/APC Attenuators
- ST/UPC Attenuators
- FC/UPC, FC/APC Attenuators
- Variable Fiber Optic In-Line Attenuators
