Product Details:
|
| Model Name: | 8 X LC Fiber Breakout Cable | Fiber Core: | 8 Core, 12 Core Or 24 Core |
|---|---|---|---|
| Fiber Diameter: | 0.9mm,2.0mm,3.0mm | Connector 1: | MTP/MPO Female |
| Connector 2: | 8 X LC | Jacket: | Riser (OFNR), Plenum (OFNP), LSZH |
| Fiber Length: | 2m Or As Your Request | Fiber Type: | Single Mode (OM3, OM4, OM5 Are Optional) |
| Wavelength: | 850nm/1310nm/1550nm | Material Shape: | Round Wire |
| Highlight: | 8 x LC Fiber Breakout Cable,2.0MM Fiber Breakout Cable,2.0MM breakout fiber optic cable |
||

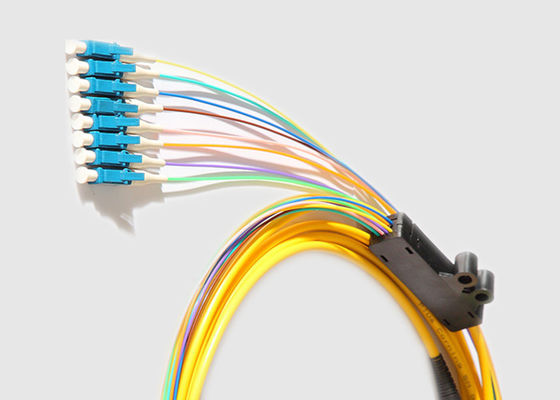

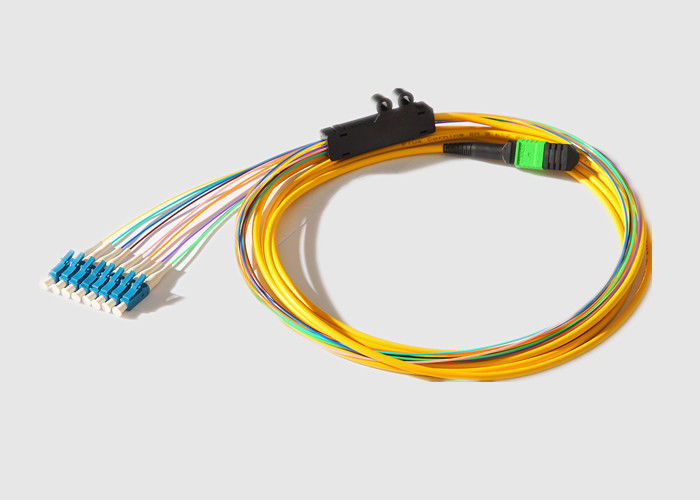

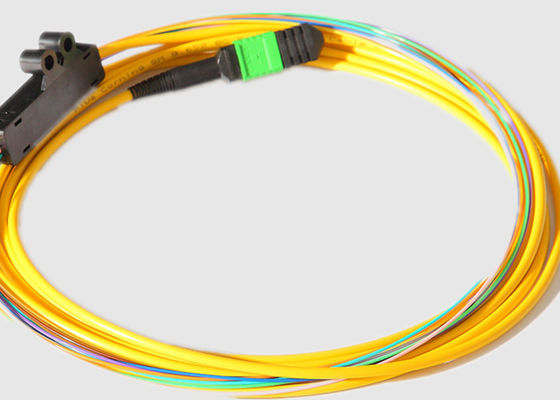

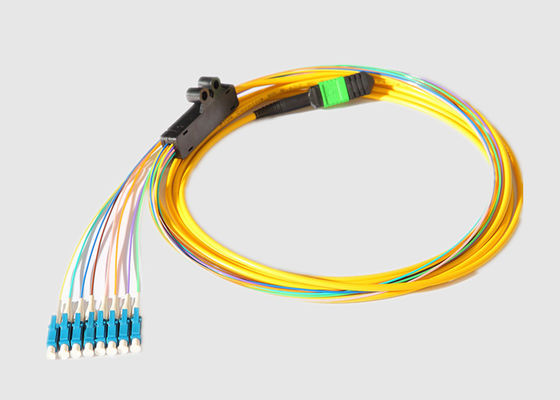

Single Mode 8F Cores 2.0MM 40G MPO To 8 x LC Fiber Breakout Cable
Basic Information:
With this MTP/MPO fiber breakout cable, you are ready for deployment in any single mode 9/125 MTP/MPO or standard fiber network.
Singlemode 9/125 cables are best used for long cable runs and the push-on connectors hold them securely in place.
As the communication industry moves towards higher-quality media and data, a higher volume of fibers is required in order to meet the demands of clients. MPO connectors enable a network to consolidate large amounts of fiber strands in a compact connector. Especially useful in the migration from 10G to 40G and 100G data transfer rates.
Features& Benefits:
Specifications and Parameter :
MPO Fiber Optic Cable Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO To LC Patch Cord Application:
MPO To LC Patch Cord Package:
