Product Details:
|
| Model Name: | MTP MPO Fiber Patch Cable | Fiber Mode: | OM4 50/125μm |
|---|---|---|---|
| Cable Diameter: | 3.0MM | Connector Type: | MTP (Elite),MPO (Elite) |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Minimum Bend Radius: | 7.5mm |
| Installation Tensile Load: | 100 N | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | OEM MPO QSFP to QSFP cable,QSFP OM4 MPO Fiber Patch Cable,OM4 50/125μm MPO Fiber Cable |
||

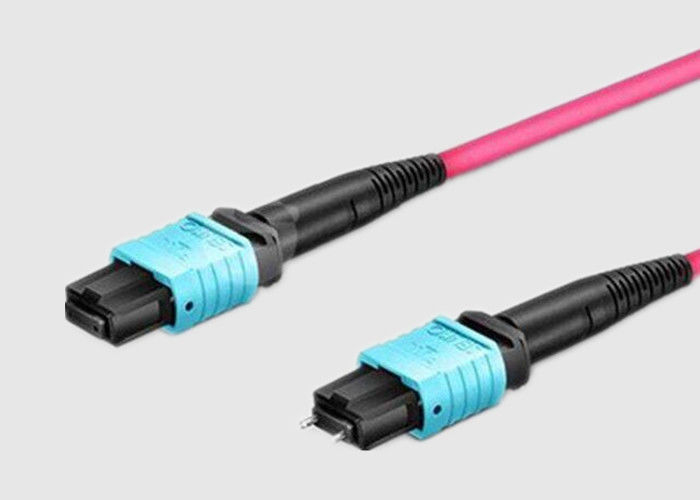

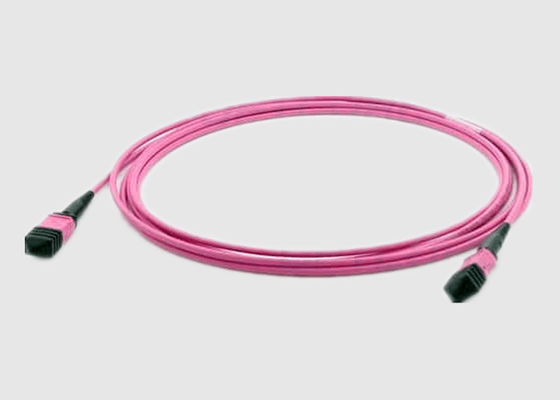

QSFP Single Mode OM4 Aqua 5M OFNR MTP MPO Fiber Patch Cable
Basic Information:
MPO connectors are well-suited for high-density, high-traffic applications including data centers and central offices. Geehe' s proprietary MPO manufacturing process employs the most advanced polishing technology for producing the MPO connectors with the best optical performance in the industry. We can offer 4, 8, 12, 24, and 48-fiber MPO assemblies, with ribbon, flat, and round cable structure options. We can also provide MPO assemblies with IP (waterproof) connectivity.
This 40G/100G/128G MPO QSFP to QSFP cable uses parallel optics technology, enabling it to transmit a single stream of data over multiple optical fibers, which is what makes 40G/100G/128G speeds possible.
MPO Optic Cable Features&Benefits:
Specifications and Parameter:
MPO Fiber Cable Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO Fiber Patch Cord Application:
Geehe's Standards Compliance :
