Product Details:
|
| Model Name: | MTP MPO Optical Patch Cord | Fiber Mode: | OM4 50/125μm |
|---|---|---|---|
| Cable Diameter: | 3.0MM | Connector Type: | MTP (Elite),MPO (Elite) |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Minimum Bend Radius: | 7.5mm |
| Installation Tensile Load: | 100 N | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | OM4 MPO Patch Cord,10Gbs MPO Patch Cord,10Gbs mpo fiber optic cable |
||

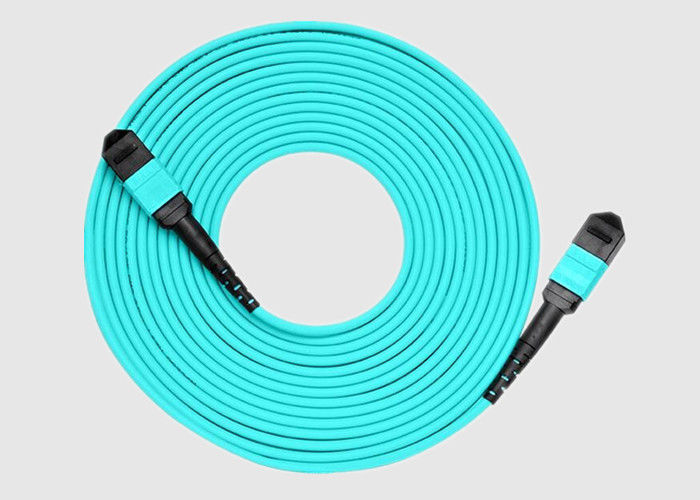

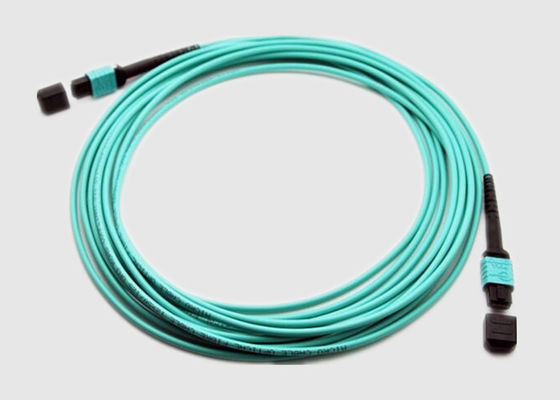

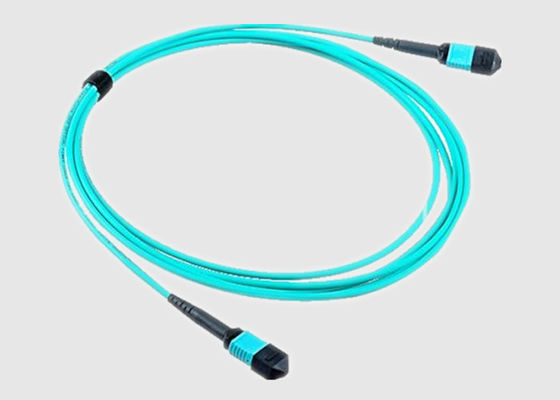

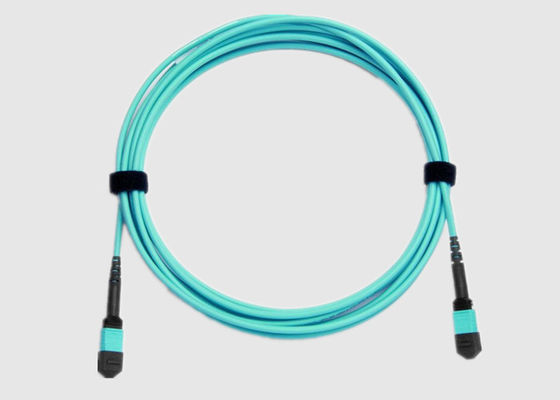

Aqua 10Gbs Multi Mode OM3 OM4 12- 24 Fiber MTP MPO Optical Patch Cord
Basic Information:
12- and 24 Mpo multimode fiber trunk cables with OFNP plenum-rated jackets simplify connections and reduce installation time by running 12 fibers in one cable.
Geehe's MPO fiber patch cords save space for permanent broadcast AV installations and data transmission for rack-to-rack connection, MTP chassis mount, fan out boxes, and fan out rack enclosures.
Optic patch cord is available in a variety of lengths, such as 1m,1.5m,2m,3m,4m,5m to 300M, Different type of optical fiber available(G.652D, G.657, OM1, OM2, OM3 or OM4, OM5).
Features&Benefits:
Specifications and Parameter:
MPO Fiber Cable Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO Fiber Patch Cord Application:
Geehe's Standards Compliance :
