Product Details:
|
| Model Name: | MPO Fiber Optic Connector | Fiber Mode: | OM4 50/125μm |
|---|---|---|---|
| Cable Diameter: | 3.0MM | Connector Type: | MTP (Elite),MPO (Elite) |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Minimum Bend Radius: | 7.5mm |
| Installation Tensile Load: | 100 N | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | 3.0mm MPO Female to MPO Male Cable,Singlemode 9/125 MTO Fiber Optic Cable,MPO Fiber Optic Cable For Network |
||

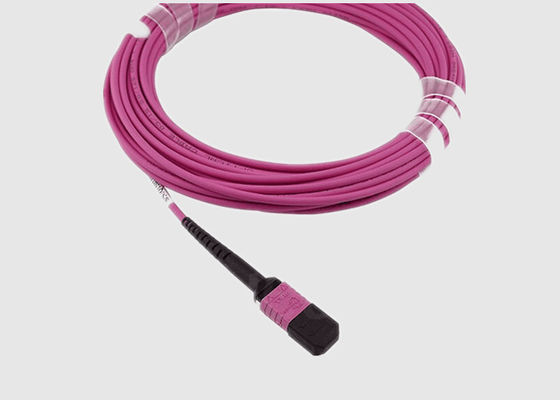

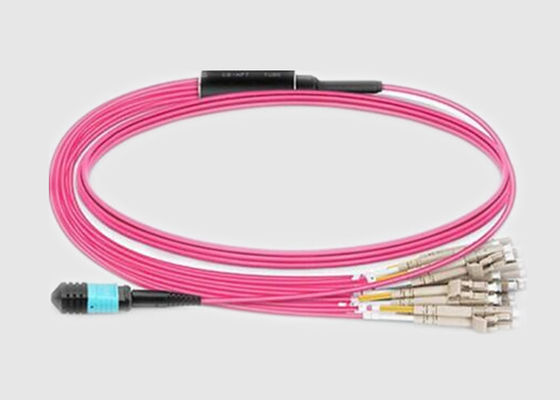

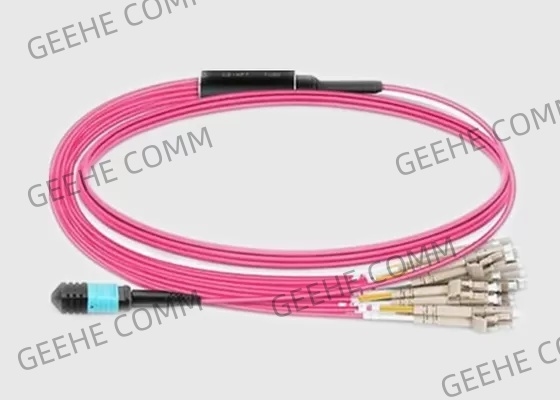

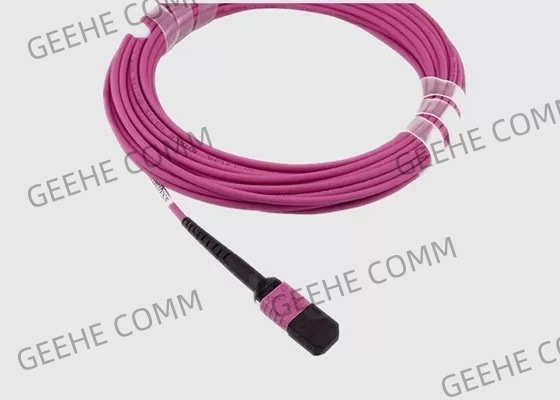

MPO Female to MPO Male Singlemode 9/125 MPO Fiber Optic Connector For Network
Basic Information:
The MPO is a high-density multi-fiber connector system built around precision molded MT ferrule. The MPO`s spring-loaded push-pull latching mechanism is easy to use while ensuring positive engagement both important features for mission-critical high-density applications. Ferrule alignment is achieved through high-precision guide pins. Geehe`s MPO is available in 4,8 and 12 fiber versions, PC and APC finishes, and supports both multimode and single-mode applications. Premium optical performance (low IL and high RL) is a result of our advanced polishing technology.
We proudly manufacture all of our custom assemblies in the USA with strict quality control. Our assemblies come to you fully tested, ready to install, and are RoHS compliant.
MPO Optic Cable Features&Benefits:
Specifications and Parameter:
MPO Fiber Cable Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO Fiber Patch Cord Application:
Geehe's Standards Compliance :
