Product Details:
|
| Model Name: | MPO To12 LC Optical Patch Cord | Fiber Mode: | Single Mode,Multi Mode |
|---|---|---|---|
| Fiber Cores: | 12 | Connector Type: | MPO To LC |
| Jacket Color: | Colorful:Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Cable Type: | Ribbon Fiber Optic Cable, Flat And Round | Cable Jacket: | PVC LSZH, OFNR, OFNP |
| 10G Ethernet Distance: | 400m At 850nm | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | MPO To12 LC Optical Patch Cord,0.9mm Optical Patch Cord,0.9mm MPO Fiber Cable |
||

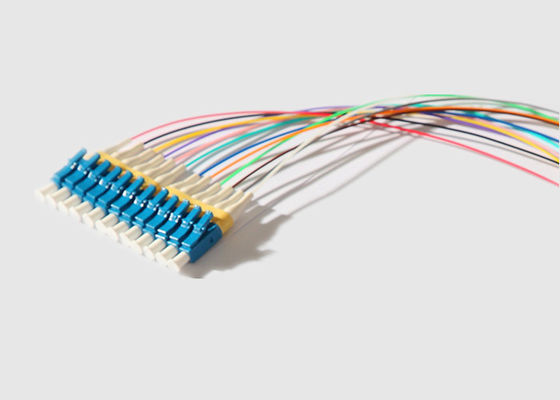

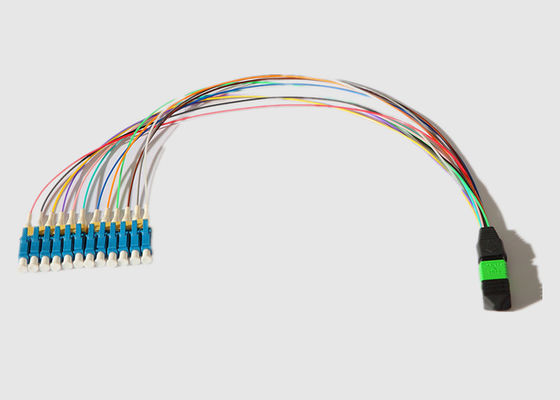

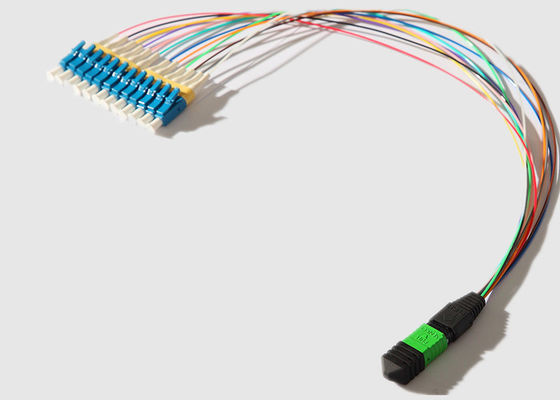

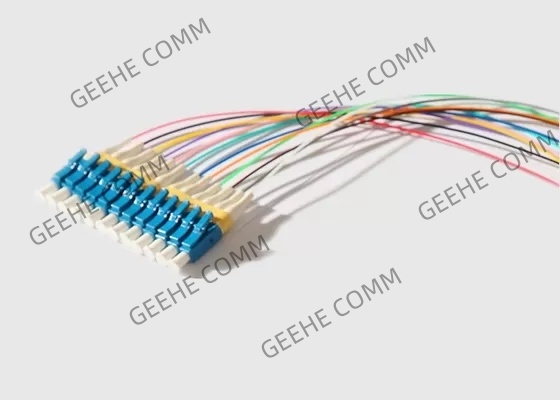

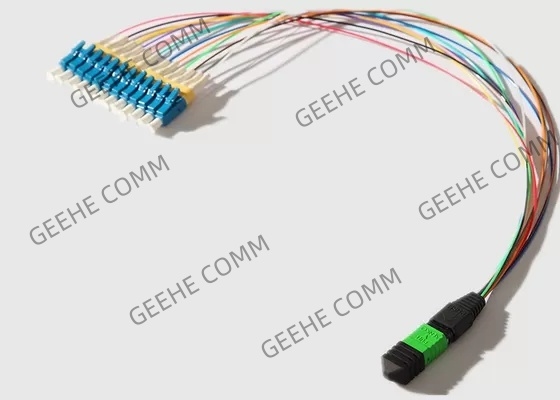

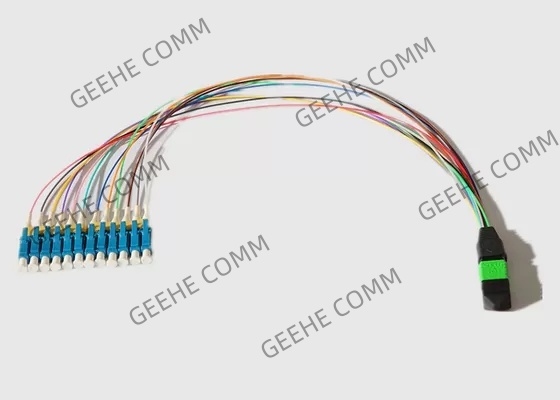

0.9mm Single Mode 12 Cores Fanout Kit MPO To12 LC Optical Patch Cord
Basic Information:
Geehe's MPO on one end in 8, 12, or 24 fiber interface, with LC Simplex or duplex connectors.
MTP/MPO fiber optic patch cord is used in Ribbon type multi-fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features&Benefits:
Specifications and Parameter :
MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO to Lc Fiber Patch Cord Application:
Geehe's Standards Compliance :
