Product Details:
|
| Model Name: | Mpo To 12 X SC Fiber Breakout Cable | Connector A: | Conec MTP Push Pull Tab |
|---|---|---|---|
| Connector B: | SC UPC Simplex | Fiber Count: | 12 Core |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Minimum Bend Radius: | 7.5mm |
| Installation Tensile Load: | 100 N | Cable Jacket: | LSZH/Plenum |
| Highlight: | Multimode MPO Fiber Cable,0.9mm mpo 12 fiber cable,0.9mm mpo to sc breakout cable |
||

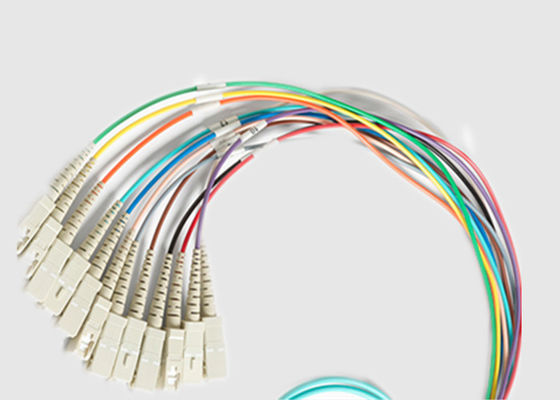

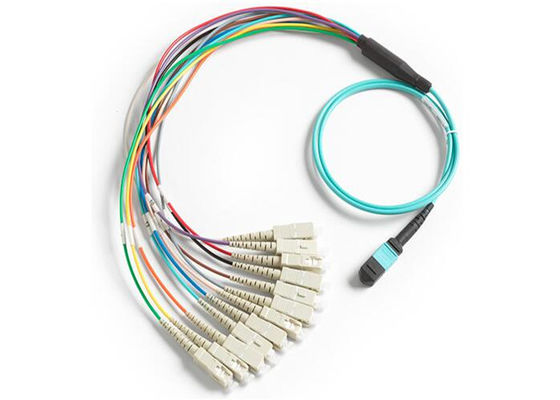

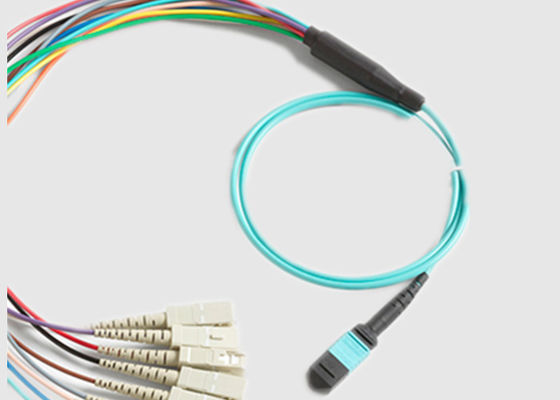

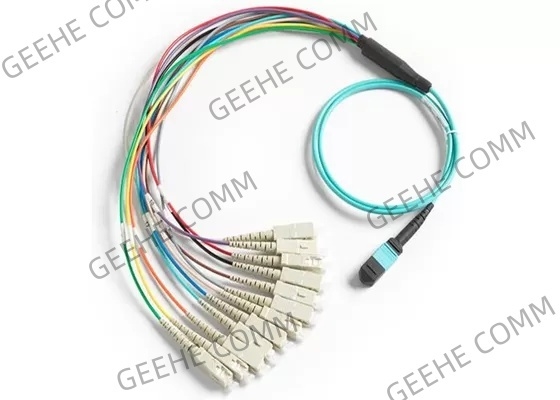

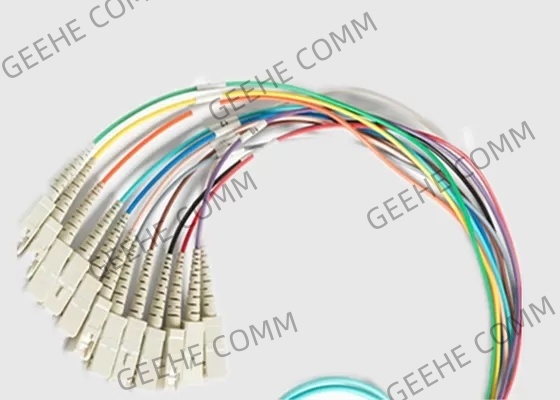

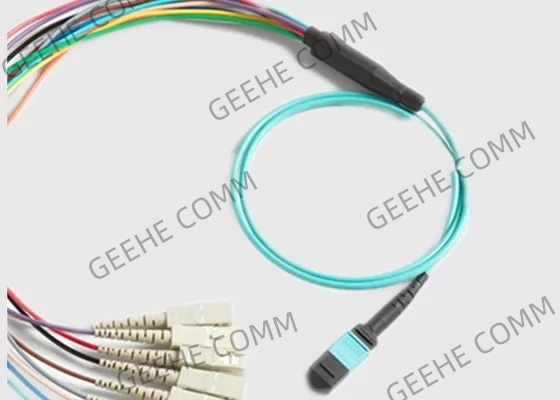

12 Colored Fibers 0.9mm Mulit Mode MPO To 12 x SC Fiber Breakout Cable
Basic Information:
The MTP/MPO Type A fiber breakout cable, you are ready for deployment in any single mode 9/125 MTP/MPO or standard fiber network. Singlemode 9/125 cables are best used for long cable runs and the push-on connectors hold them securely in place.
The MTP/MPO fiber breakout cable also be comprised of one MTP/MPO connector on one end and 12 simplex sc APC connectors, These breakout cables are perfect for when you have limited space and want to convert your standard fiber network to a high-density MTP/MPO network but still want that great fiber connection, with many colors.
Features&Benefits:
Specifications and Parameter:
MPO Fiber Cable Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
