Product Details:
|
| Model Name: | Multimode MTP/MPO Cassette | Fiber Mode: | OM4 50/125μm |
|---|---|---|---|
| Fiber Count: | 24 Fiber | Front Connector Type: | 12x LC Duplex |
| Rear Connector Type: | 2x MPO-12 Male (Pinned) | Test Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Polarity: | Type A |
| 10G Ethernet Distance: | 400m At 850nm | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | Multimode MTP Cassette,50/125 MTP Cassette,OM3 MTP Cassette |
||

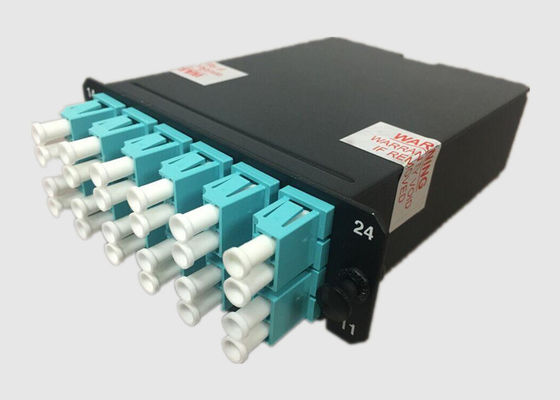

40Gb Pass OM3 2x MPO-12 Duplex 50/125 Multimode MTP/MPO Cassette
Basic Information:
MPO Fiber Optic Cassette Module is designed for the secure transition between MPO and LC discrete connectors. It’s suitable for high-density backplane and data center cabling which offers excellent benefits in terms of on-site installation time and space-saving.

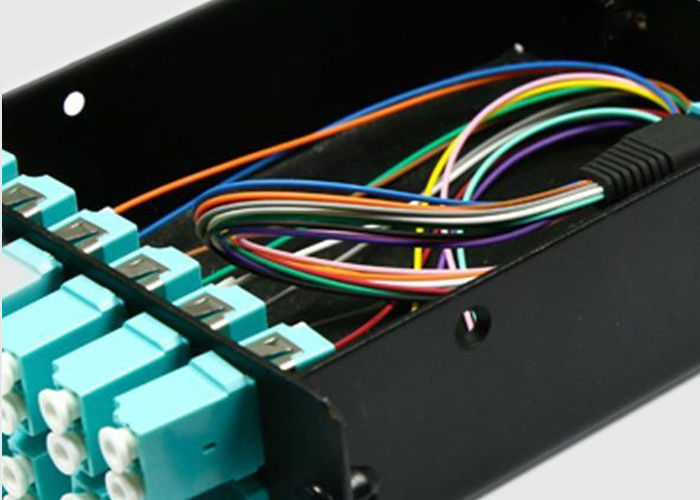

This Fiber Optic Cassette Module kit includes 2x pre-terminated MPO-12 to 12x LC Duplex 50/125 multimode OM3 fiber optic harness cable, an MPO adapter in back, 12x LC duplex adapters in the front and the cassette module that the fiber is routed and connected inside of it.
Geehe offers specialty components to help support multiple direction cable routing and management. Each component can be aimed in the desired direction to offer an organized approach to cable installation.
Features&Benefits:
Specifications and Parameter:
16F MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
MC-2xMPO/M-12xDLC-24OM3-A:MPO Fiber Optic Cassette, 2x MPO-12 Male to 12x LC/UPC Duplex, 24 Fibers Multimode OM3, Type A, Key up-Key down
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO Cassette Application:
Datacenter infrastructure
Storage area network
Emerging 40 & 100Gps Protocols
Parallel optics
Enterprise network cabling system
