Product Details:
|
| Model Name: | MPO Fiber Optic Cable | Fiber Core: | 4, 8,12, 16, 24, 48, 72, 96 Cores Sizes Available |
|---|---|---|---|
| Fiber Diameter: | 2.0mm | Connector Type: | MPO,SC, SC/APC, LC, LC/APC, ST, FC, FC/APC Connector Options |
| Jacket Color: | Beige/Aqua/Green/Yellow,etc | Fiber Jacket Material: | Riser (OFNR), Plenum (OFNP), LSZH |
| Fiber Length: | 1m Or As Your Request | Fiber Type: | Single Mode (OM3, OM4, OM5 Are Optional) |
| Wavelength: | 850nm/1310nm/1550nm | Long-Term Tensile Load: | 50 N |
| Highlight: | 2.0mm mpo fiber optic cable,1m MPO Fiber Cable,Riser OFNR MPO Fiber Cable |
||

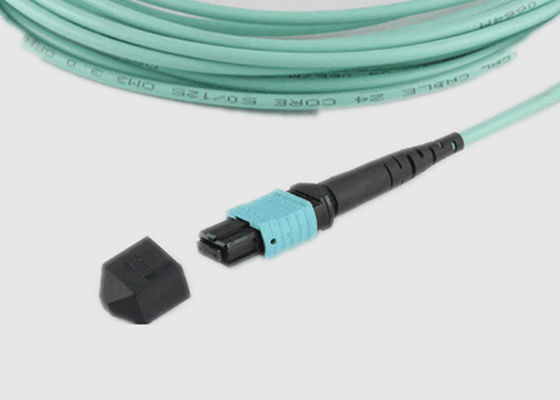

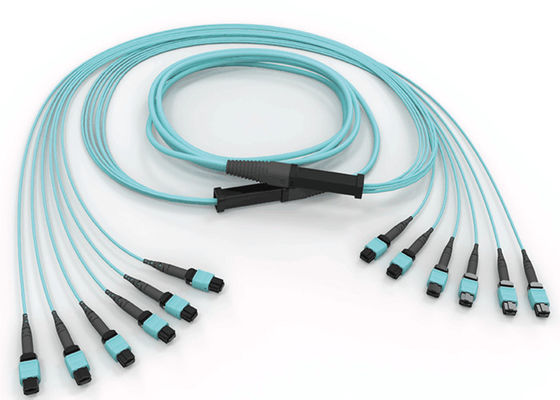

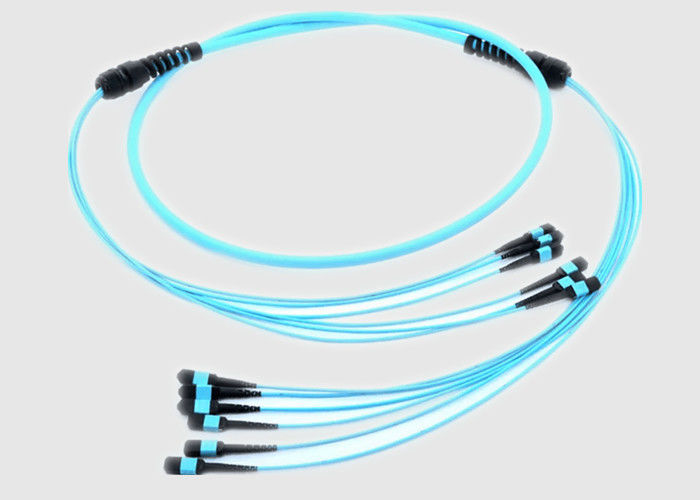

12 Cores OM3 Single-mode Standard 2.0 mm Breakout MPO Fiber Optic Cable
Brief Description:
* 12- and 24-fiber options available
* Industry-standard connector housing
* Cut-to-length fibre optic cable
* Boots available for additional fiber routing capabilities
* Cable assemblies 100% quality tested prior to shipping
* Low-loss options available
* Multiple ribbons stacked inside round jacket
* Loopback Adapters available
* Standard 2.0 mm furcation for single fiber connectors
Main Features& Benefits :
* Industry-standard connector housing
* Simplifies implementation
* Compatible with other pre-installed cables
* MTP/MPO Loose tube trunk pre-terminated fibre cables
* Our fibre optical cable is available in 4, 8, 12, 16, and 24-core options
* PVC cable resistant to oxidation and degradation
Specifications and Parameter:
Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO To MTP Application:
* Datacenter systems wiring
* MPO-MPO or MPO-Breakout terminations
* Head-end termination to a fiber “backbone”
* Termination of fiber rack systems
* 40G and 100G optics system, QSFP module
