Product Details:
|
| Model Name: | MPO-MPO Multimode 8-Fiber Cables | Fiber Core: | 8 Core, 12 Core Or 24 Core |
|---|---|---|---|
| Cable Diameter: | Micro Cable Trunk Max OD 24 Cores 4.5 ± 0.3mm Patchlead Max OD 24 Cores 3.0 ± 0.1mm | Connector Type: | MPO To LC UPC Duplex |
| Jacket Color: | Aqua/Green/Yellow,etc | Fiber Jacket Material: | Riser (OFNR), Plenum (OFNP), LSZH |
| Insulation: | Plenum, Riser | Fiber Type: | Mulit Mode (OM3, OM4, OM5 Are Optional) |
| Polish Type: | UPC To UPC | Cable Assembly Lengths: | 1 To 150 Meter |
| Highlight: | 144 Fibers MPO Fiber Cable,100G MPO Fiber Cable,144 Fibers 100g mpo cable |
||

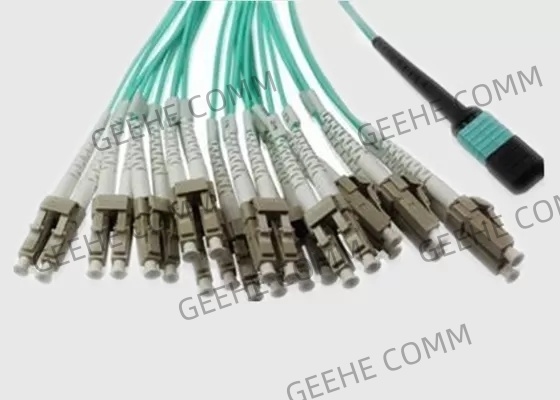

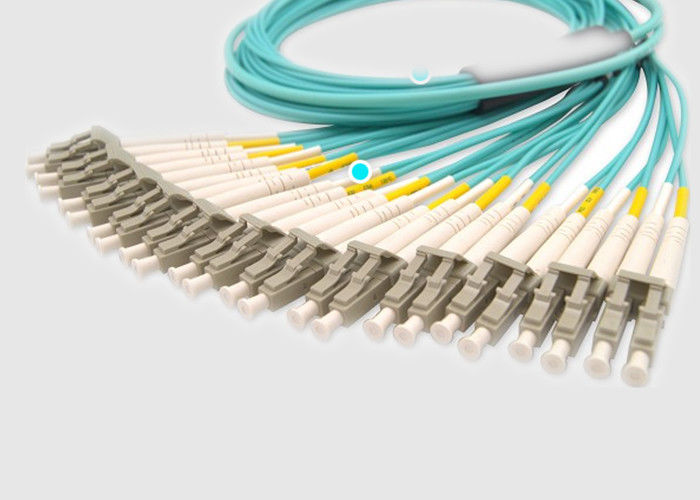

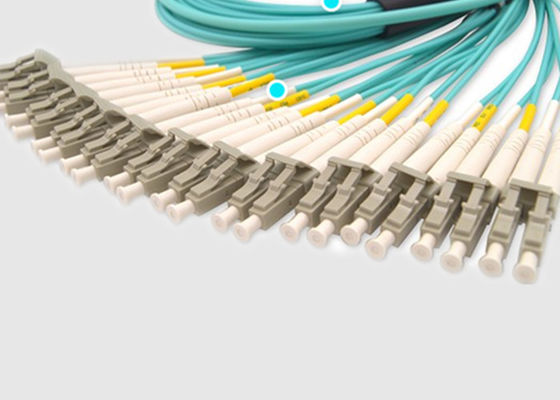

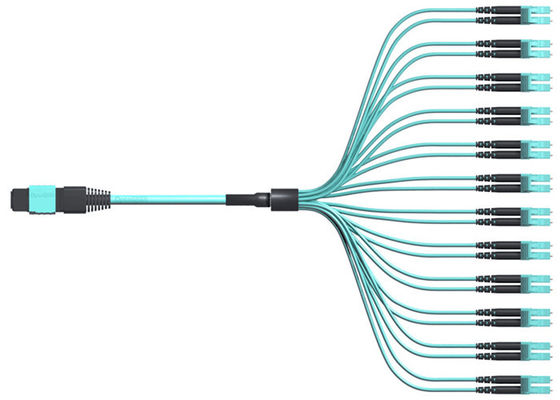

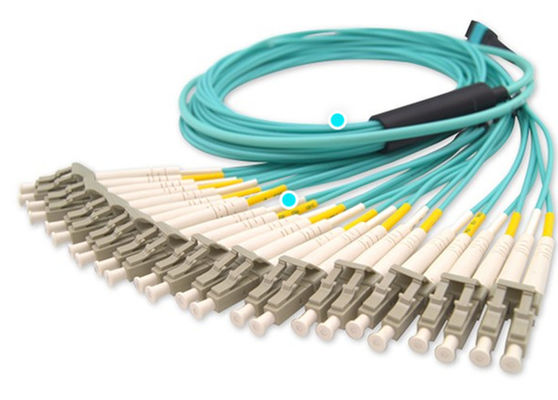

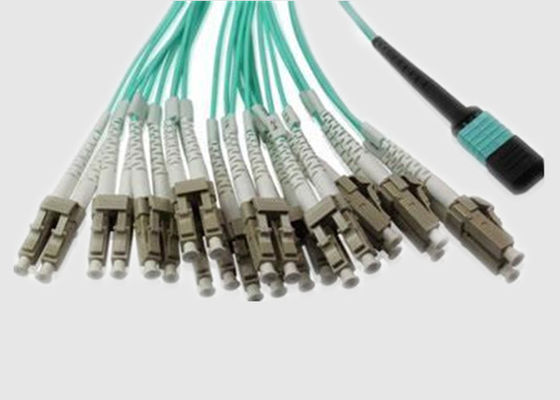

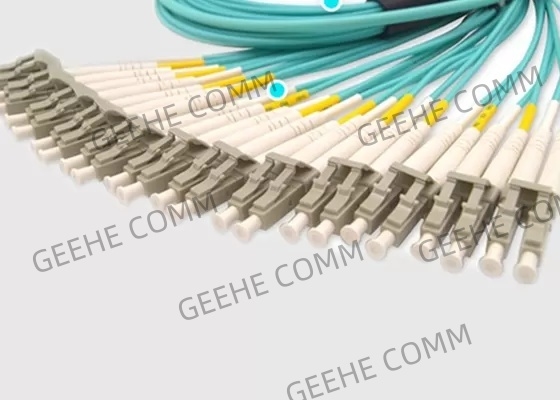

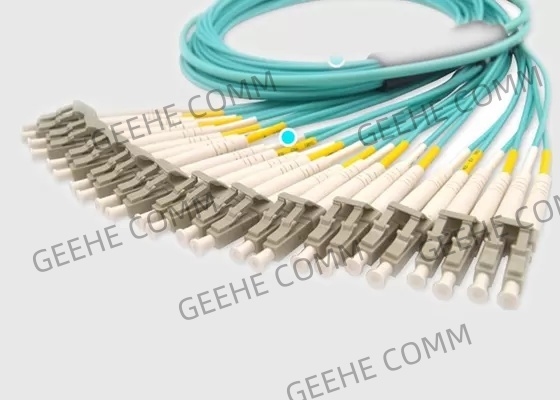

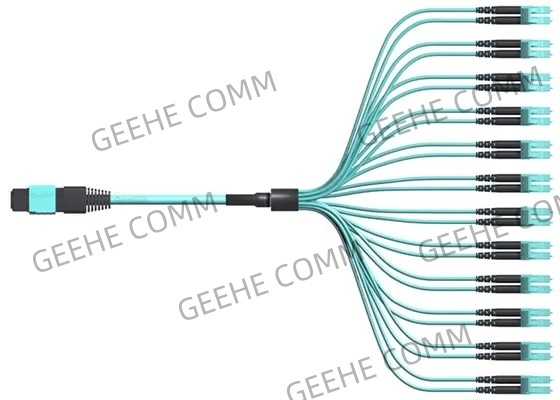

24-144 Fibers OM3 LC Dulpex 40/100G MTP / MPO Fiber Optic Patch Cables
Mpo To MPO Cable Sell Point :
MPO24xFibers Ferrule Cable Assembly can be used with 24xfibers ferrules MPO to LC module providing 40/100G compatible infrastructure for legacy non-parallel optics 4/8/10/16G Ethernet/ Fiber Channels protocols networks.
Assemblies are offered in the main 2 standard variants as the Trunks using a double jacket 4.5 mm OD MicroCable structure and as a Patch leads using a single jacket, 3 mm OD MicroCable structure. The small and compact size of MIcroCable is ideal for high-density data center applications.
Main Features& Benefits :
Specifications and Parameter:
Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) | ≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 | -0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 | LZ: LSZH NP: OFNP NR: OFNR | FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) | L: Low loss B: Standard loss | 12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core | A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type | 5M to 50M | |
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
