Product Details:
|
| Model Name: | Single Mode Fiber Optic Attenuator | Connector Gender: | Fixed Female To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Type: | Fixed Attenuator | ||
| Highlight: | SC/UPC Male To Female Optic Attenuator,SC/UPC Fiber Optic Attenuator,5dB Single Mode Fiber Optic Attenuator |
||

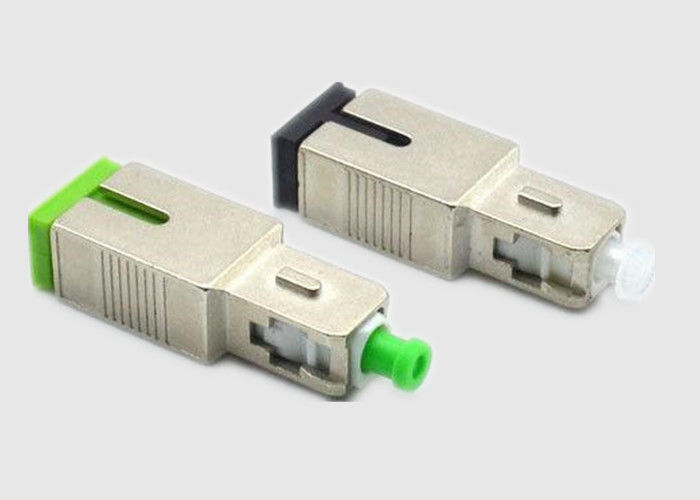

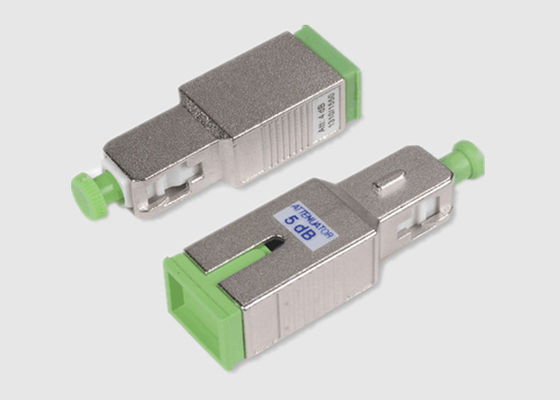

SC /UPC 5dB Male To Female Build Out Single Mode Fiber Optic Attenuator
Product Description:
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal, It is used to limit the optical power received by the photodetector to within the limits of the optical receiver.
SC/UPC 5dB Singlemode 9/125um, Male-Female attenuators contain doped fiber suitable for both 1310nm and 1550nm operation. Fixed
attenuation values are available in 1dB increments from 1 to 25dB.
SC Optic Attenuator Feature And Benefits:
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
All orders with fast turn over, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
