Product Details:
|
| Model Name: | Fixed Fiber Optic Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Mounting Style: | Inline | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Blue,Green, Beige |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Connector A: | LC/UPC Female Simplex | Connector B: | LC/UPC Male Simplex |
| Highlight: | 3dB fixed optical attenuator,3dB Fiber Optic Attenuator,LC/LC fixed optical attenuator |
||

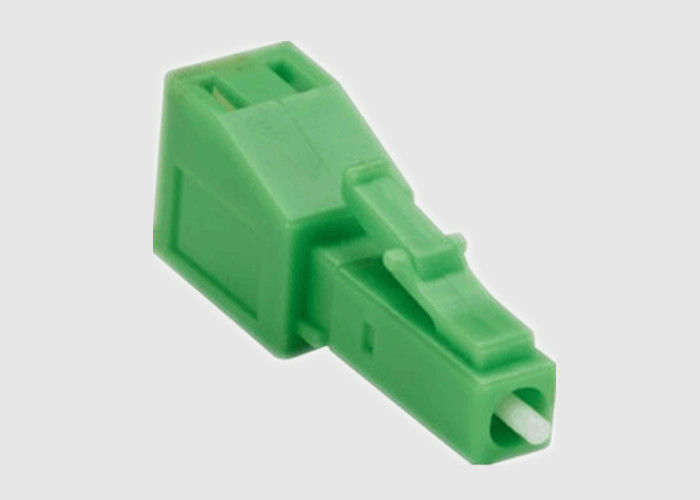

3dB LC/LC Singlemode UPC Male/Female Fixed Fiber Optic Attenuator
Product Description:
Optic pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. A typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance.
They also can be used to test the linearity and dynamic range of photosensors and photodetectors in test and measurement applications.
This fixed fiber optic attenuator consists of an LC simplex male on one end and an LC simplex female on the other end. It is typically used to either test power levels or reduce the power levels of an optical signal.
LC /UPC Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
LC UPC Attenuator Application:
More Types Of Optic Attenuator:
