Product Details:
|
| Model Name: | In-Line Fiber Optic Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Mounting Style: | Inline | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Green |
| Housing: | Metal, Plastic | Connector: | SC To APC |
| Highlight: | 10dB inline optical attenuator,SC/SC inline optical attenuator,10dB single mode attenuator |
||

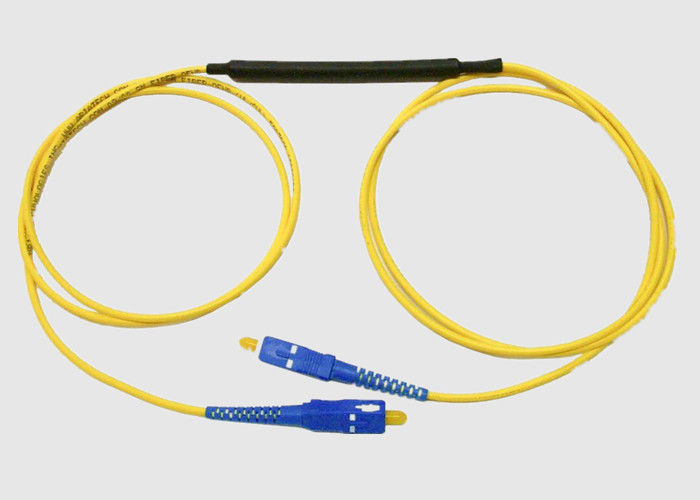

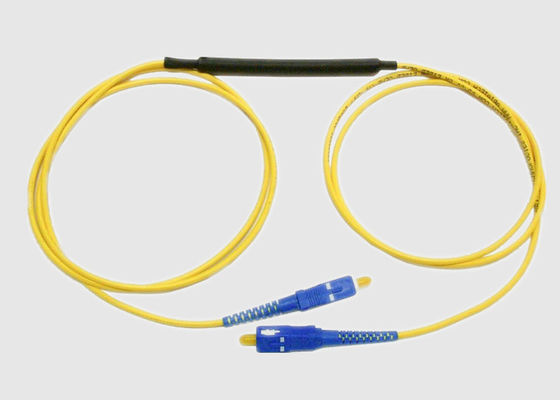

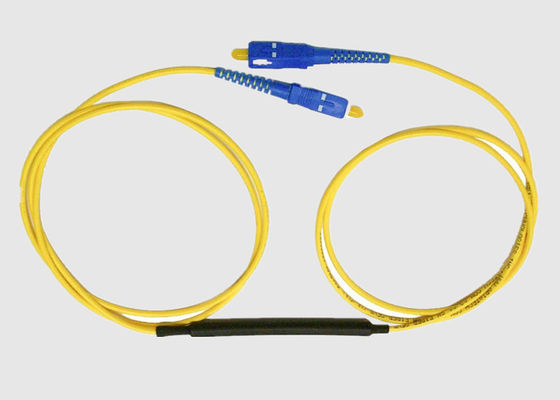

SC/SC Singlemode APC Male/Female 10dB In-Line Fiber Optic Attenuator
Product Description:
Fibre coupled fixed attenuator(In-line)
Fiber-coupled attenuators are available with YOFC fiber and are jacketed with 900um loose tube or 3mm tubing. In-line attenuators can be supplied un-terminated or with FC/APC, SC-APC, or E2000 connectors.
Other terminations are available.
- Operating wavelength range:980nm or 1064nm or 1310 or 1550nm
- Fiber type:Yofc or other brands
- Attenuation values:5dB,10dB,15dB and 20dB or specify
SC /APC Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| V:Wavelength | 98-980nm,64-1064nm,1310-1310nm,1550-1550nm |
| W:Attenuation | 5-5dB,10-10dB,15-15dB,20-20dB |
| X:Jacket type | L-900um loose tube jacket,C-3mm loose tube jacket |
| Y:Fiber length | 5-0.5m,1-1m |
| Y:Connector | 1-FC/UPC,2-FC/APC,3-SC/UPC,4-SC/APC,6-LC/UPC,7-LC/APC |
Ordering Examples:
| Part Number | Description |
| OA-SM-98-10-1-2 | SM fiber coupled optical attenuator,980nm,10dB,900um loose tube jacket,1m fiber length,FC/APC connectors |
| OA-SM-64-5-L-1-2 | SM fiber coupled optical attenuator,1064nm,5dB,900um,loose tube jacket,1m fiber length,FC/APC connectors |
| OA-SM-1310-15-C- 0.5-1 | SM fiber coupled optical attenuator,1310nm,15dB,3mm cable jacket,0.5m fiber length,FC/UPC connectors |
| OA-SM-1550-20-C-1-2 | SM fiber coupled optical attenuator,1550nm,20dB,3mm cable jacket,1m fiber length,FC/APC connectors |
SC APC Attenuator Application:
