Product Details:
|
| Model Name: | Singlemode Fiber Optic Attenuator UPC Male | Gender Type: | Fixed Female To Male |
|---|---|---|---|
| Connector Type: | ST/UPC | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Blue,Green, Beige |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Attenuation Tolerance: | (1-10dB) ±0.5, (11-25dB) ±10% | Fiber Mode: | Singlemode |
| Highlight: | 5dB Single Mode Fiber Attenuator,WDM ingle Mode Fiber Attenuator,5dB optical variable attenuator |
||

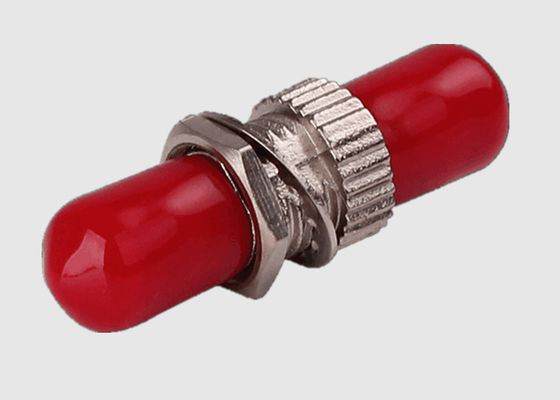

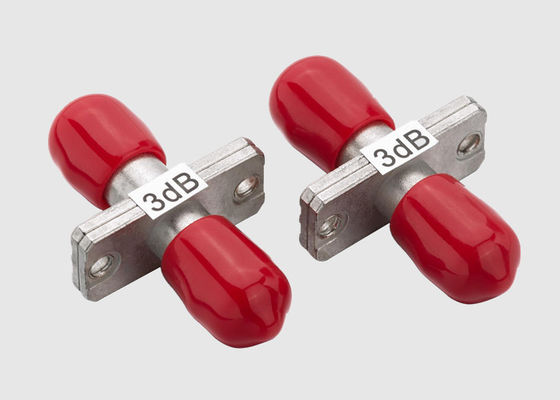

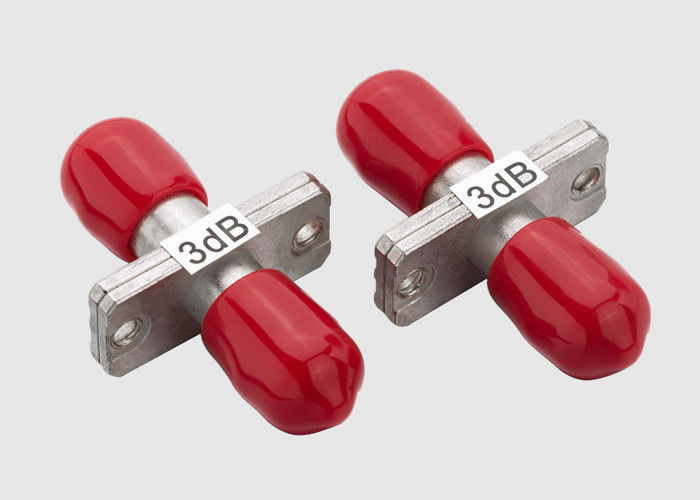

5dB ST/ST Singlemode Fiber optic Attenuator UPC Male/Female For WDM
Basic Information:
ST fiber attenuators are used inline to reduce the fiber optic power by a certain fixed value. They are high attenuation accuracy and working temperature from -40 C to +75 C. Our ST fiber optic attenuators are made according to industrial standards
ST Fiber Optical attenuators with the development of the optical communication industry and the emergence of a very important fiber optical passive components, ST Fiber optical attenuators is to reduce the energy of the fiber optical signal to an optical device. For input optical power attenuation to avoid distortion due to the optical receiver input power leaving the super-generated.
ST/ST Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
ST Attenuator Application:
Package Option:
In a compact plastic box with individual compartments and corresponding labels showing different attenuation.
