Product Details:
|
| Model Name: | Single Mode Fiber Optic Attenuator | Connector Gender: | Fixed Female To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | ||
| Highlight: | 200mW Fiber Optic Attenuator,200mW 5dB Attenuator,FC 5dB Attenuator |
||

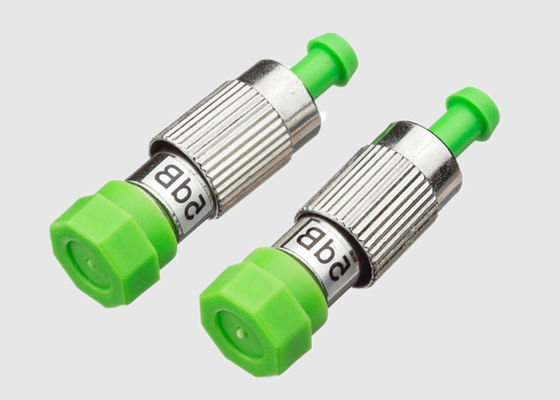

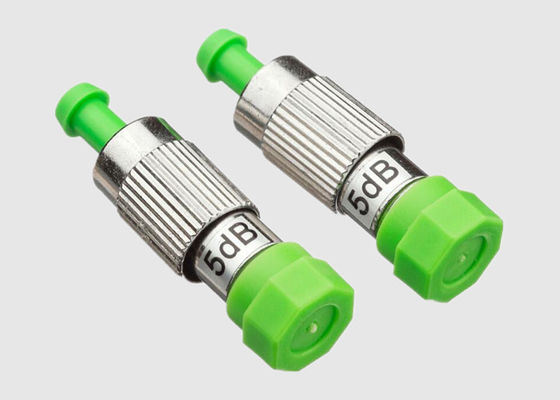

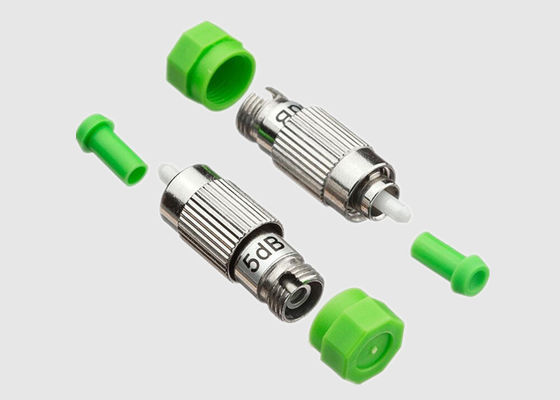

High Return 5dB Loss FC Build-out Fiber Optic Attenuators Applications
Product Description:
Fiber Optic Pad attenuators are designed to give accurate attenuation over a wide range of wavelengths for your project or application requirement. They used on a more permanent basis in order to match the signal with the transmitter and receiver’s specific power levels.
Build-out attenuators are plug type design allows direct usage on the ends of fiber optic patch cords and adapters, it is commonly used for test and measurement, optical sensor, and telecommunication. We manufacture high-quality FC UPC and FC APC build out fiber optic attenuators ranging from 1dB to 30dB compatible with FC connectors from different suppliers. there are wide keys and arrow keys for options.
Fiber Optic Attenuator Feature:
FC Optic Feature And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
FC Attenuator Application:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Inspection
With 16 years experience of famous brands and Japanese companies, also accept factory inspection by the third part.
5) After Service
Any products with commons welcome feedback, we will reply within 2 hours and solve the problems within 24 hours, service time:24/7.
