Product Details:
|
| Model Name: | SC Singmode Fixed Attenuator | Connector Gender: | Fixed Female To Female |
|---|---|---|---|
| Fiber Connector: | SC Connector | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | Male To Female Fiber Optic Attenuators,Fiber Optic Attenuator For WDM,SC Singmode Fixed Attenuator |
||

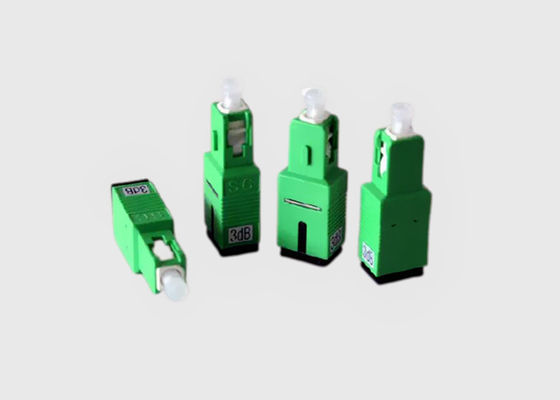

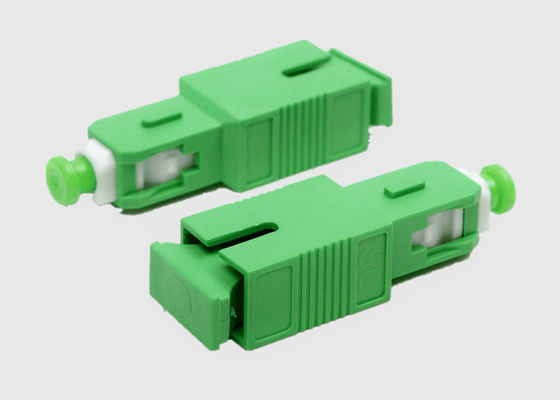

10dB Male/Female Inlined SC Singlemode Fixed Attenuator For WDM
Product Description:
This Fiber Optic Attenuator, Fixed - SC/UPC 20dB is necessary to prevent over saturating an optical receiver when the optical power is too high. Using attenuators will ensure low bit error rates and prevent damage to receiving components. SC male-female, 20db
Geehe's Male to female fiber optic attenuators is doped fiber attenuators, providing low wavelength sensitivity, high stability, high return loss, and good reliability. This makes our attenuators well suited for EDFA, DWDM, and other high-power output applications, it's also called Plug-Type attenuator.
SC Optic Attenuator Feature And Benefits:
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
