Product Details:
|
| Model Name: | Fixed SC/APC Optical Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | SC/APC Fiber Optic Attenuator,Fiber Optic Attenuator Single Mode,Fixed Optical Attenuator |
||

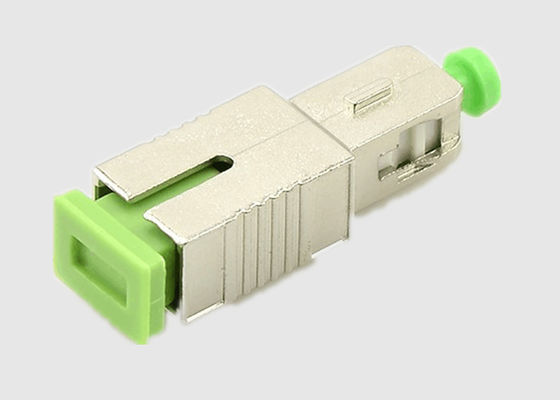

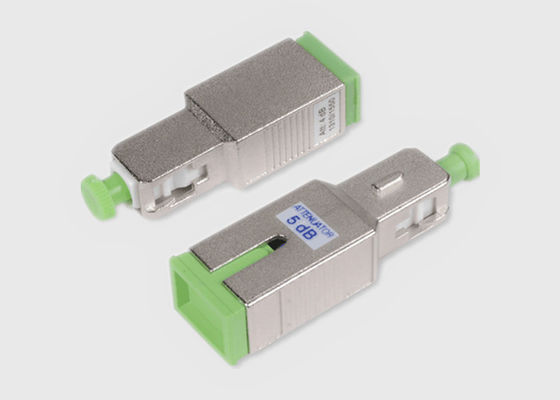

Fixed SC/APC Optical Attenuator Female to Male Singlemode 5dB
Product Description:
SC/APC Optical Attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the waveform itself. Our Single-Mode SC -APC female to male fixed fiber optic attenuators offer low reflection, high mode stability, and a variety of attenuation values. Shaped with metal material, our attenuators perfectly protect the core insert from external damage.
Male to Female buildout Optical Attenuation (pads) are available in all fiber modes. LC attenuators, ST, SC, LC/APC, SC/APC, FC and FC/APC types. Just choose dB and then Single-mode or Multimode. Our attenuators are manufactured to industry standards with ceramic ferrules and are 100% fully tested.
SC Optic Attenuator Feature And Benefits:
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
5) Workshop
We now have high-class non-dust workshops and each worker is forced to wear clip caps and shoe covers. Before they enter the workshop, there is an air shower room to keep hygiene that makes sure the work environment is clean and safe.
6) Young team
Every customer will have one-to-one service, our team is young and with more passive and energy to service for customers.
