Product Details:
|
| Model Name: | Female To Female Fixed Optical Attenuator | Connector Gender: | Female To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | SC-SC Fixed Optical Fiber Attenuator,SC Adaptor Type Optical Fiber Attenuator,Female To Female Fixed Optical Attenuator |
||

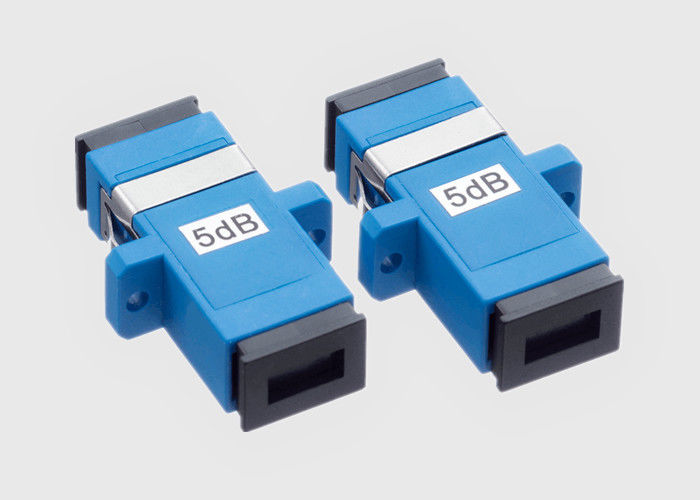

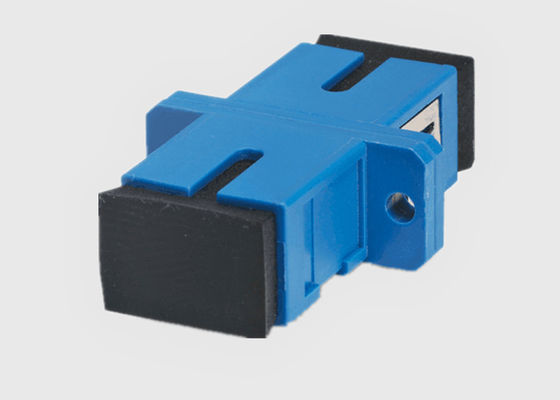

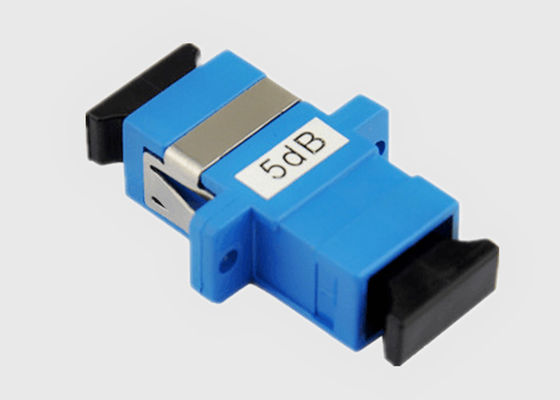

Fixed Flanged Fiber Adapter Type SC-SC Female To Female Fixed Optical Attenuator
Product Description:
Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level. They are with ceramic ferrules and there
are various types to fit different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed
level, Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their
function is the same as attenuators and is used inline.
SC Adaptor Type Optic Fiber Attenuators Female to Femaleare with SC connector interface. They are with premium ceramic sleeves. Plug type SC fiber attenuator is a female to male type, while bulkhead SC attenuator is a female to female type. The SC Adaptor Type Optic Fiber Attenuators' operation wavelength range is 1240nm to 1620nm. They are used inline to decrease the optical power light in the systems for both lab and commercial applications.
SC Optic Attenuator Feature And Benefits:
1.Metal ion-doped fiber
2.High-power light source durability
3.Wavelength independence
4.Attenuation levels ranging from 1dB to 30dB.
5.1310nm, 1550nm, 1250-1625nm, and 1350/1550nm dual wavelengths
6.Easy installation, Low return loss, Readily panel mountable
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB | |||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC | 1: APC 2:UPC | 03: 03DB 04: 04DB | |||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
5) Workshop
We now have high-class non-dust workshops and each worker is forced to wear clip caps and shoe covers. Before they enter the workshop, there is an air shower room to keep hygiene that makes sure the work environment is clean and safe.
6) Young team
Every customer will have one-to-one service, our team is young and more passive and energy to service the customers.
