Product Details:
|
| Model Name: | Fiber Optic Attenuator Single Mode | Connector Gender: | Fixed Female To Female |
|---|---|---|---|
| Fiber Connector: | LC Connector | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | Female To Female LC Fiber Optic Attenuator,LC UPC Fiber Optic Attenuator,Fiber Optic Attenuator Single Mode |
||

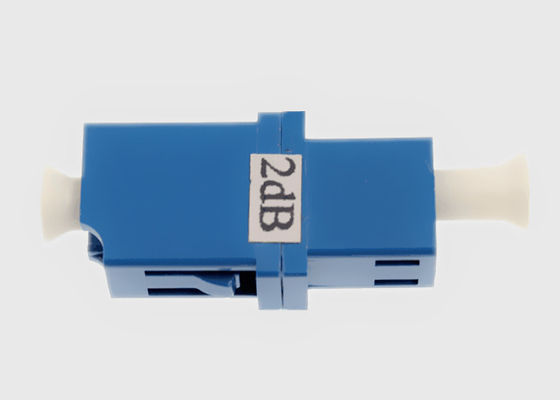

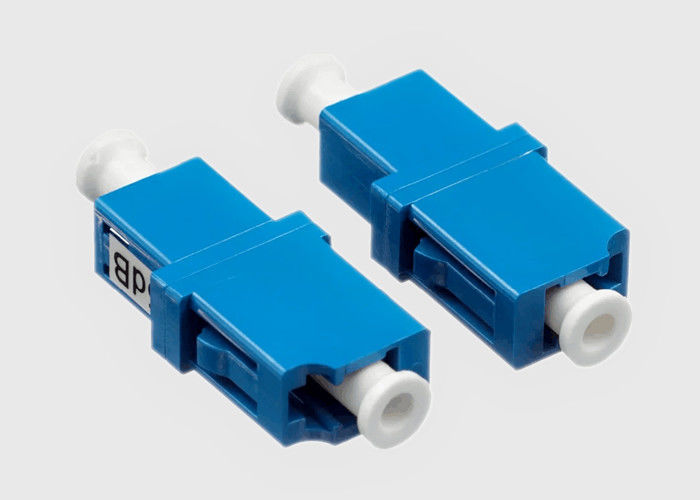

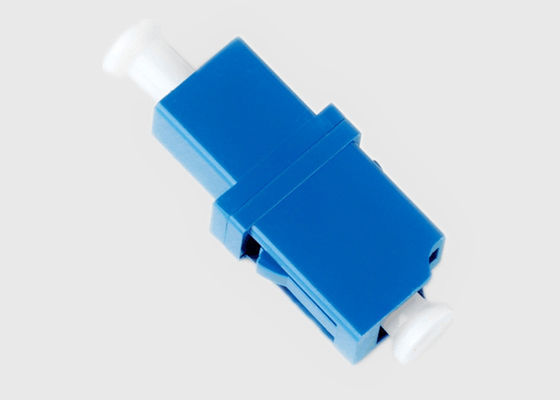

Fixed Flange Female to Female LC UPC Fiber Optic Attenuator Single Mode
Product Description:
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system, debugging fiber-optic instrument calibration correction, optical signal attenuation. And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Female to female LC Fiber Optic Attenuator is able to connect from LC connector to LC connector, while male to female LC Fiber Optic Attenuator from LC adapter to LC connector. The combination of attenuation film in female to female LC attenuator or attenuation fiber in male to female LC attenuator and precision molded polymer/metal housing provides reliable and stable optical attenuation performance.
LC Optic Attenuator Feature And Benefits:
LC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB | |||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC | 1: APC 2:UPC | 03: 03DB 04: 04DB | |||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
LC Attenuator Application:
More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
