Product Details:
|
| Model Name: | Fixed SC UPC Fixed Optic Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Fiber Connector: | LC/SC/FC/ST/LSH | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Ferrule Type: | Zirconia Ceramic | Housing: | Metal, Plastic |
| Transfer Mode: | Singlemode | Max Optical Input Power: | 200mW |
| Mating Durability: | <0.2dB | Sleeve Material: | Ceramic |
| Highlight: | Singlemode 15dB Fixed Optic Attenuator,Fixed SC UPC Fiber Optic Attenuator,SGS Male to Female Fiber Optic Attenuator |
||

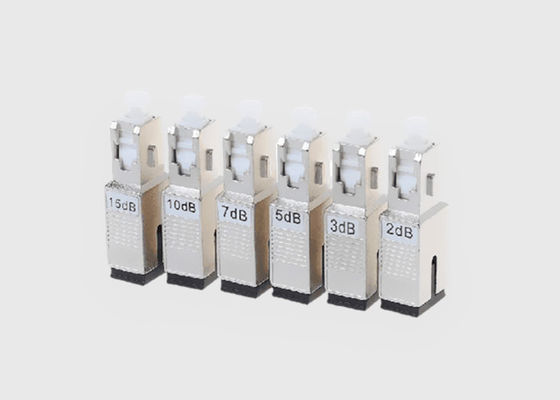

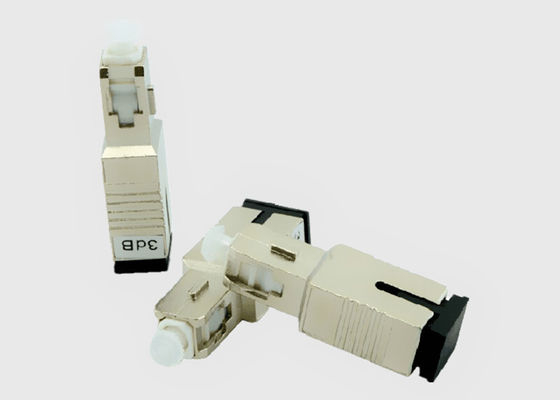

Male to Female 15 dB Singlemode Fixed SC UPC Fixed Optic Attenuator
Product Description:
Male to female fiber optic attenuators is doped fiber attenuators, providing low wavelength sensitivity, high stability, high return loss, and good reliability. This makes our attenuators well suited for EDFA, DWDM, and other high-power output applications, it's also called Plug-Type attenuator.
The Fixed Optic Attenuator 15 dB (Male to Female Variation Scale 0 ~ 30 dB) is mainly used in communication systems to reduce optical power launched onto the photodetector and provides an accurate attenuation over a wide range of wavelengths.
SC Optic Attenuator Feature And Benefits:
SC Optic Attenuator Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
SC Attenuator Application:

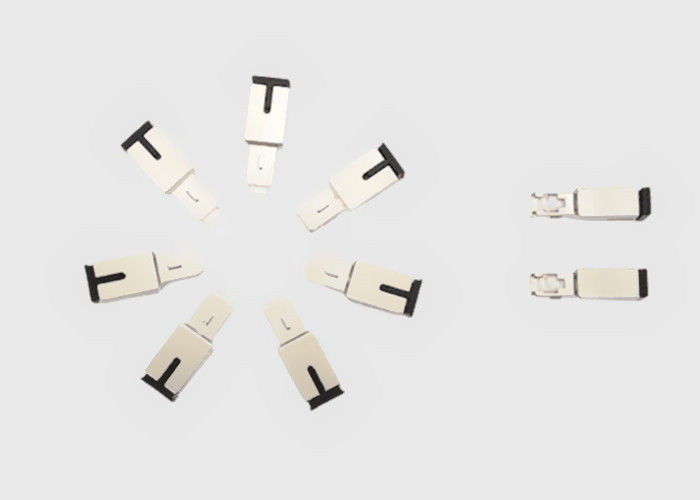

More Optic Attenuator Options:
Geehe Factory Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
For all orders with fast turnover, we use ERP System to control the order process and attenuator production line with skilled workers and QC follow on the line.
