Product Details:
|
| Model Name: | MPO To 4x LC Duplex Fiber Breakout Cable | Fiber Mode: | OM3 (50/125) |
|---|---|---|---|
| Cable Diameter: | 3.0MM | Connector Type: | MPO Female - LC Duplex |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m Or OEM | Minimum Bend Radius: | 7.5mm |
| Installation Tensile Load: | 100 N | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | MPO to 4x LC Duplex Fiber Breakout Cable,8 Fiber OM3 Fiber Breakout Cable |
||
MPO Female to MPO Male Singlemode 9/125 MPO Fiber Optic Connector For Network
Fast Overview:
* 1-864 pre-terminated cable assemblies are available
* Can be Designed with the Following Fiber Types: SM, Bend Insensitive SM; 62.5µm MM;50µm (OM2) and 50µm Laser Optimized (OM3/OM4)
* 12F/8F MPO Ribbon Assemblies available that Facilitate Quick & Easy Termination of Ribbon Fibers for 1G/10G/40G/100G Solutions
* Customizable Termination and Cable Options Available
* Available with Sumitomo’s Flexible MPO connector, which allows gender and polarity change in the field as well as push-pull operations.
* Riser, plenum, and LSZH options available
* All industry-standard Connector Configurations can be specified

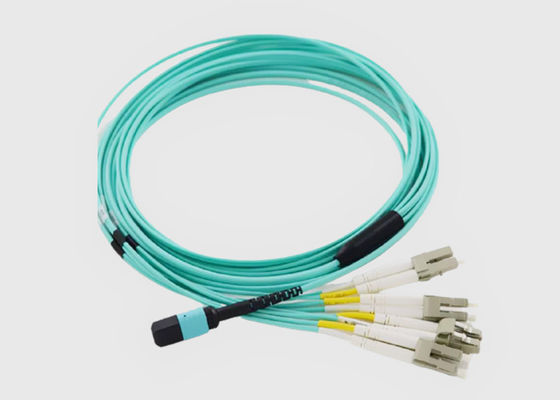

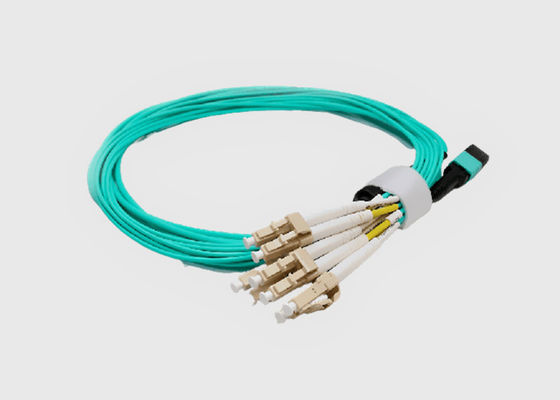

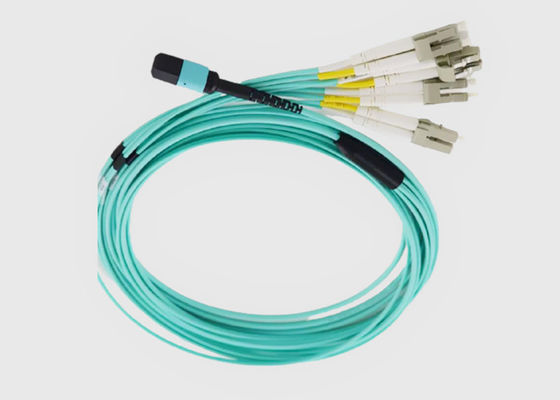

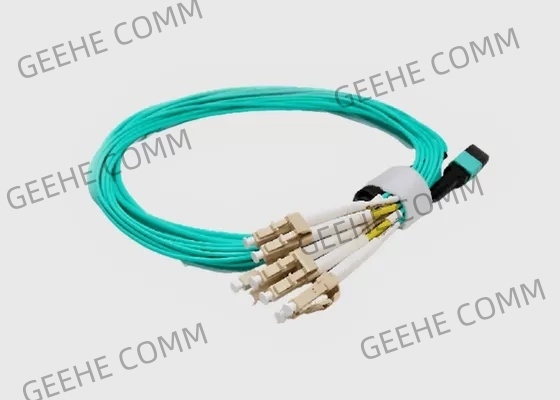

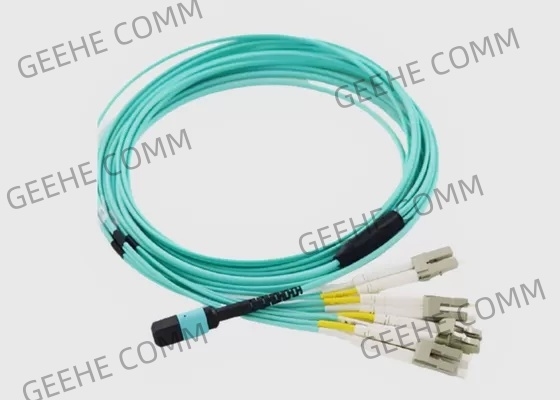

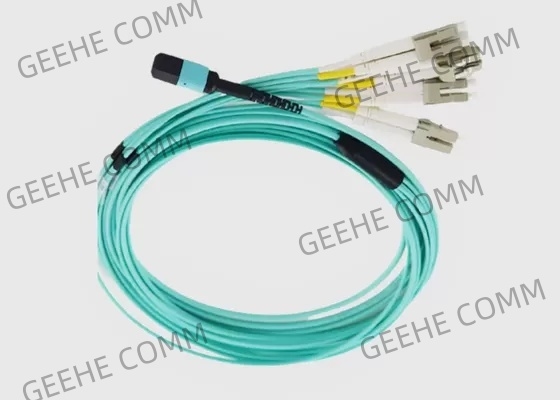

Geehe's MF-MPO/F-4xDLC-OM3-x M-B-LS is factory pre-terminated MPO to 4xLC Duplex 50/125 10G OM3 breakout cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. This MPO breakout cable is comprised of one MPO female connector and 4xLC duplex fiber connectors on the other end. The MPO harness cables utilize 8 core OM3 fibers to fully transmit 40Gbps. 4 fibers in each direction transmitting at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity, and the MTP connector is available upon request. This OM3 MPO to 4xLC Duplex harness cable is suitable for use in 100G QSFP28 SR4 to 25G SFP28 SR, or 40G QSFP SR4 to 10G SFP+ SR transceiver interconnection.
MPO Optic Cable Features&Benefits:
Specifications and Parameter:
MPO Fiber Cable Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
LC Legacy ordering information:
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
| LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
| OM3 | OM3 | 5 | |||||||
| OM4 | OM4 | 10 |
|||||||
